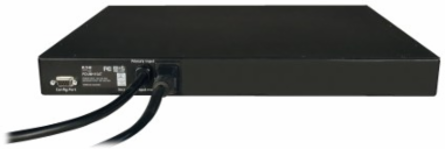

Tripp Lite PDUMH15AT Metered Automatic Transfer Switch PDU, 1.4kW, 2 Inputs, 8 Outputs, 1U
- MPN: PDUMH15AT
- UPC: 037332126658
- PPN: TRP-PDUMH15AT
CAD
$906.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Metered Automatic Transfer Switch PDU, 1.4kW, 2 Inputs, 8 Outputs, 1U
Features
- Single phase 15A 120V Auto Transfer Switch / ATS PDU
- Enables redundant A/B power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 NEMA 5-15P inputs; 8 NEMA 5-15R outlets
- Two digit visual current meter reports equipment load in amps; Upgrade options available
- TAA Compliant
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Output Voltage
- 100; 120; 127 V
- Input Voltage
- 100; 120; 127 V
- Input Phase
- Single-Phase
- Input Cord Length
- 12 ft
- Output Receptacles
- (8) NEMA 5-15R
- Unit Dimensions
- 1.75 x 17.5 x 14.5 in
- Material
- Metal
- Relative Humidity
- 5-95% non-condensing
- TVSS Grounding
- Rear grounding lug
- Front Panel LEDs
- 8 LEDs for outlets; 2 LEDs for input power
- SNMP Compatibility
- Supports optional SNMPWEBCARD or WEBCARDLX for remote IP control
Output Capacity1.52 kW (127V), 1.44 kW (120V), 1.2 kW (100V), 15A total (de-rated to 12A continuous), 12A max per outlet
Input Amperage15A (de-rated to 12A continuous)
Frequency Compatibility50 / 60 Hz
Input Cord Type(2) NEMA 5-15P
Form Factor1U horizontal rackmount
Unit Weight11 lbs
Storage Temperature Range-30°C to +50°C (-22°F to +122°F)
Operating Elevation0-10,000 ft (0-3000 m)
PDU TypeAuto-Transfer Switch; Metered
Current MeterTwo-digit visual meter (amps)
CertificationsUL 60950-1, CSA, Class A Emissions, NOM Mexico, RoHS, TAA
