Tripp Lite PDUMH20HVAT 3.8kW Metered Transfer Switch PDU, 1U, 2 C20 Inlets, 8 C13 & 2 C19 Outputs
- MPN: PDUMH20HVAT
- UPC: 037332156488
- PPN: TRP-PDUMH20HVAT
CAD
$998.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

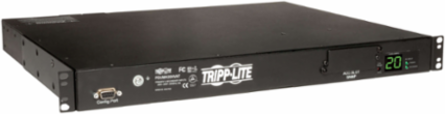

3.8kW Metered Transfer Switch PDU, 1U, 2 C20 Inlets, 8 C13 & 2 C19 Outputs
Features
- Single phase 16/20A 200-240V Auto Transfer Switch / ATS PDU
- Enables redundant-power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 C20 inputs; 8 C13 and 2 C19 outlets
- Two digit visual current meter; Upgrade options available
- Federal Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 3.84 kW (200-240V, 16A total capacity)
- Voltage
- 200-240V (200; 208; 220; 230; 240V)
- Phase
- Single-Phase
- Input Cord Length
- 12 ft
- Depth
- 14.8 in
- Form Factor
- 1U Horizontal Rackmount

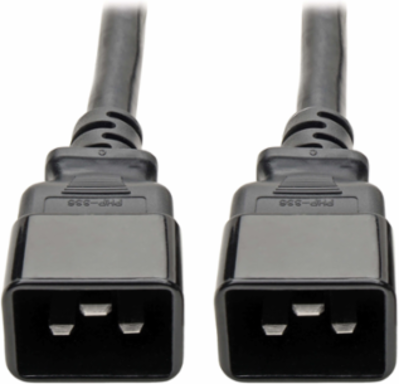

- Input Plugs
- 2 IEC-320 C20
- Material
- Metal
- Relative Humidity
- 5 to 95% (non-condensing)
- Compliance
- UL 60950, CE, Class A Emissions, NOM, RoHS, TAA Compliant
- Network Management Cards
- SNMPWEBCARD; WEBCARDLX
- Front Panel LCD Display
- Digital display reports total PDU output current in amps
- Recommended Electrical Service
- 20A 208/240V; 16A 230V
- Switches
- Toggle switch to set voltage nominal (HI for 220-240V, LO for 200-208V)
- Minimum Required Rack Depth
- 18.3 in
- Customized Load Management Receptacles
- Upgrade with SNMPWEBCARD or WEBCARDLX for switched PDU and programmable outlet sequences
Maximum Input Amps20A (agency de-rated to 16A continuous)
Amperage16/20A
Frequency50 / 60 Hz
Unit Dimensions (H x W x D)1.72 x 17.3 x 14.8 in
Weight10.3 lbs
PDU TypeAuto-Transfer Switch; Metered
Output Receptacles8 C13, 2 C19
Operating Temperature Range-30°C to 50°C (-22°F to 122°F)
Operating Elevation0-10,000 ft (0-3000 m)
SNMP CompatibilityIncludes slot for optional SNMPWEBCARD or WEBCARDLX accessory for remote outlet control over IP
TVSS GroundingRear grounding lug
Frequency Compatibility50 / 60 Hz
Front Panel LEDs8 LEDs for C13 outlets, plus 2 for Primary and Secondary power status
Input Cord DetailsTwo inputs connect to separate PRIMARY and SECONDARY power sources
PDU Plug Type2 IEC-320 C20
Product Warranty Period2-year limited warranty
