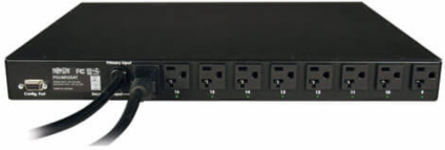

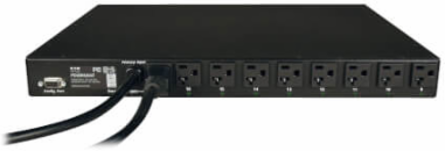

Tripp Lite PDUMH20AT 1U Metered Automatic Transfer Switch PDU, 1.9kW, 2 NEMA L5-20P Inputs, 16 Outputs
- MPN: PDUMH20AT
- UPC: 037332126665
- PPN: TRP-PDUMH20AT
CAD
$1119.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
1U Metered Automatic Transfer Switch PDU, 1.9kW, 2 NEMA L5-20P Inputs, 16 Outputs
Features
- Single phase 20A 120V Auto Transfer Switch / ATS PDU
- Enables redundant A/B power option for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 1U horizontal rackmount; 2 NEMA L5-20P / 5-20P inputs; 16 5-15/20R outlets
- Two digit visual current meter reports equipment load in amps; Upgrade options available
- TAA Compliant
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 2.03 kW (127V), 1.92 kW (120V), 1.6 kW (100V) / 20A total (Agency de-rated to 16A max), 16A max per outlet
- Input Phase
- Single-Phase
- PDU Input Voltage
- 100 V, 120 V, 127 V
- Output Receptacles
- 16 NEMA 5-15/20R
- Overload Protection
- n/a
- Input Cord Length
- 12 ft
- PDU Plug Type
- (2) NEMA 5-20P; (2) NEMA L5-20P
- Dimensions (HxWxD)
- 1.75 x 17.5 x 14.5 in
- Material
- Metal
- Relative Humidity
- 5 to 95% non-condensing
- TVSS Grounding
- Rear grounding lug
- Network Management
- Optional SNMPWEBCARD or WEBCARDLX for remote control over IP
- Warranty
- 2-year limited warranty
Input Voltage100 V, 120 V, 127 V
Input Amperage20 A (Agency de-rated to 16 A max)
Frequency Compatibility50 / 60 Hz
PDU TypeAuto-Transfer Switch; Metered
Switchesn/a
Input Cord Type(2) NEMA L5-20P cordsets with (2) 5-20P adapters for separate primary and secondary power
Form Factor1U Horizontal Rackmount
Weight12.2 lbs
Operating Temperature Range5 to 122 °F (-15 to 50 °C)
Operating Elevation0-10,000 ft (0-3000 m)
ComplianceUL 60950-1, CSA, NOM, RoHS, TAA Compliant
Operating Environment NotesFront panel LEDs for power status; digital display for output current in amps; super-fast transfer switch time (2-7 ms)
