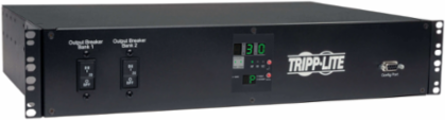

Tripp Lite PDUMH30HVAT 5.8kW Metered Auto Transfer Switch PDU, 30A, 2U, 19 Outlets
- MPN: PDUMH30HVAT
- UPC: 037332159212
- PPN: TRP-PDUMH30HVAT
CAD
$1661.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
5.8kW Metered Auto Transfer Switch PDU, 30A, 2U, 19 Outlets
Features
- Single phase 30A 208/240V Auto Transfer Switch / ATS Metered PDU with Solid State Switching
- Enables redundant-power configurations for single-corded network devices
- Separate primary & secondary inputs connect to any two compatible power sources
- 2U horizontal rackmount; 2 L6-30P inputs; 19 outlets (16 C13, 2 C19, 1 L6-30R)
- Front panel digital display with LED indicators reports output amps in 4 loading segments, plus total kW and input voltage
- Trade Agreements Act / TAA Compliant for GSA Schedule purchases
- 2-year limited warranty
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 5.8 kW
- Input Voltage
- 200; 208; 240 V
- Frequency Compatibility
- 50/60 Hz
- Output Circuit Breakers
- Two 20A; Breaker 1 controls 9 outlets (8 C13, 1 C19); Breaker 2 controls 9 outlets (8 C13, 1 C19); L6-30R unbreakered
- Form Factor
- Horizontal (2U rackmount)
- Unit Dimensions (HxWxD)
- 3.5 x 17.5 x 12.5 in
- Storage Temperature Range
- -30°C to 50°C (-22°F to 122°F)
- Relative Humidity
- 5 to 95% (non-condensing)
- Compliance
- UL 60950-1, Class A Emissions, NOM, RoHS, TAA
Maximum Input Amps30A (Agency de-rated to 24A continuous)
PhaseSingle-Phase
Output Receptacles16 C13, 2 C19, 1 L6-30R

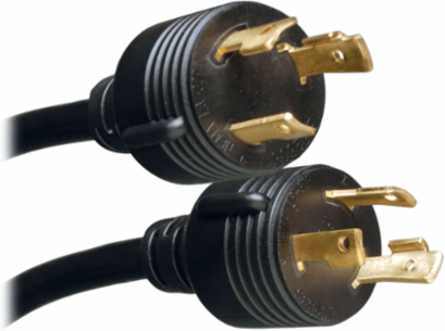

Input Cords2 NEMA L6-30P, 10 ft
Minimum Rack Depth16 in
Unit Weight13.7 lbs
Operating Elevation0-10,000 ft (0-3000 m)
MaterialMetal
UPC Code037332159212
