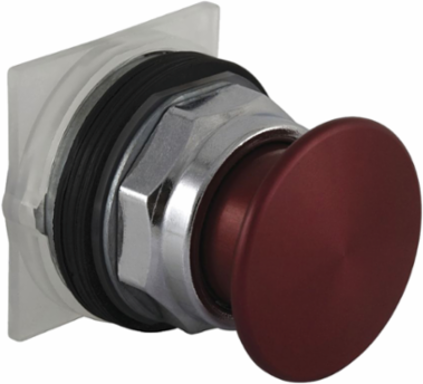

Square D 9001KR9RM94 Harmony 9001K Red Push Button Head, 40 mm Mushroom, IP66, Metal
- MPN: 9001KR9RM94
- UPC: 785901677222
- PPN: SCH-9001KR9RM94
CAD
$186.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This 40mm mushroom shaped push-button head is ideal for situations where quick actions are required for a process or machine to function correctly or where operator movements require maximum ergonomy It is clearly distinguishable visually at a distance thanks to a prominent mushroom shape It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony 9001K
- Product Or Component Type
- head for push-button
- Product Compatibility
- contact block 9001KA..
Type Of Operatorpush-pull
Operator Profilered mushroom Ø 40 mm, unmarked
Device Short Name9001K
Complementary
- Operator Additional Information
- screw-on metal with set screw
- Operator Profile
- mushroom Ø 40 mm
- Cap/Operator Or Lens Colour
- red
- Net Weight
- 0.141 kg
- Cad Overall Height
- 45 mm
- Contacts Type And Composition
- without contact block
- Operator Position Information
- 2 positions
- Type Of Operator
- push-pull
- Cad Overall Width
- 45.5 mm
Mounting Diameter30 mm
Shape Of Signaling Unit Headround
Head Materialmetal
Size30 mm
Device Presentationbasic element
Bezel Materialmetal
Mechanical Durability5000000 cycles
Operating Positionany position
Cad Overall Depth74 mm
Environment
- Product Certifications
- UL 508 || NEMA
- Shock Resistance
- 50 gn IEC 60068-2-27
- Ip Degree Of Protection
- IP66 IEC 60529
- Ambient Air Temperature For Storage
- -40-70 °C
- Nema Degree Of Protection
- NEMA 1 || NEMA 12 || NEMA 13 || NEMA 2 || NEMA 3 || NEMA 3R || NEMA 4 || NEMA 6
Ambient Air Temperature For Operation-25-70 °C
Vibration Resistance7 gn 2-500 Hz)IEC 60068-2-6
StandardsIEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C 4520 || JIS C 852 || UL 508 || CSA C22.2 No 14
Overvoltage Categoryclass II IEC 61140
Protective TreatmentTC
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP121006EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
