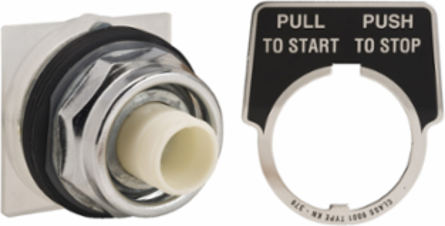

Schneider Electric 9001KR9 Harmony 30 mm Metal Push Button Head, 2 Positions, Push-Pull Operation
- MPN: 9001KR9
- UPC: 785901008859
- PPN: SCH-9001KR9
CAD
$153.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This head for push-button is a separate component of the range of control and signaling units, Harmony 9001K diameter 30mm. It has a chromium-plated metal bezel. It is supplied without knob. It features push pull operation. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Compatibility Code
- 9001K
- Device Short Name
- 9001K
- Operator Position Information
- 2 positions
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony 9001K
- Shape Of Signaling Unit Head
- round
- Type Of Operator
- push-pull
- Pep Code
- ENVPEP2503027EN
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Publishable Date2026-01-30
Stocking FlagN
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2503027EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Bezel Materialmetal
Contacts Type And Compositionwithout contact block
Mounting Diameter30 mm
Operator Profilewithout cap flush
Product Or Component Typehead for push-button
ReturnabilityYes
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Cap/Operator Or Lens Colourwithout mushroom
Package Weight(Lbs)110.300 g
Warranty (In Months)18
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Circularity Profile
- ENVEOLI2503027EN
- Eu Rohs Directive
- Compliant By Exemption
- Nema Degree Of Protection
- NEMA 3R/4/13
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503027EN
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2503027EN
Ip Degree Of ProtectionIP65/IP66
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- head for push-button
Range Of ProductHarmony 9001K
ETIM
- ETIM 8
- EC000221
ETIM 9EC000221
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
