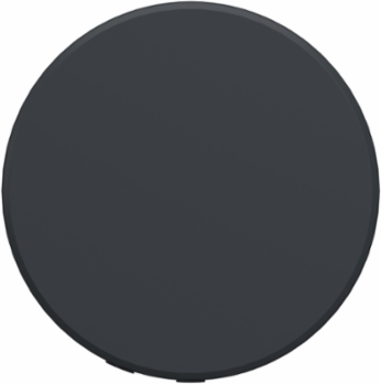

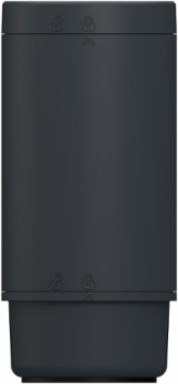

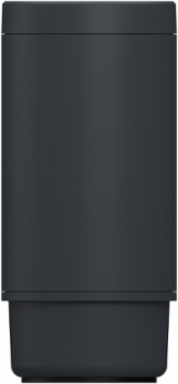

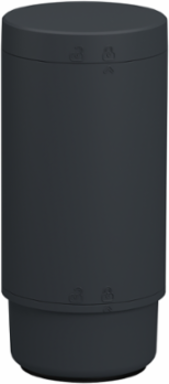

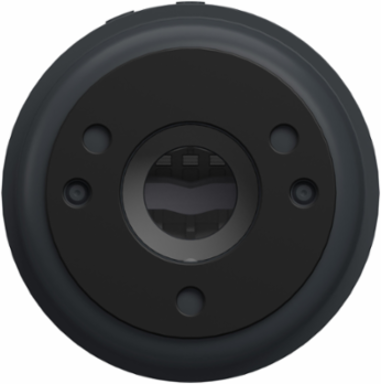

Schneider Electric XVB7C21M Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, AC base with adapter and cover, Grey
- MPN: XVB7C21M
- PPN: SCH-XVB7C21M
CAD
$237.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

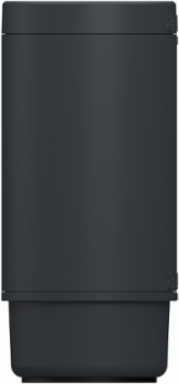

Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, AC base with adapter and cover, Grey
Features

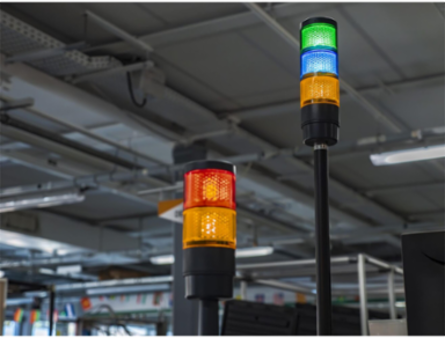

- Engineered as the foundation for the 70 mm Harmony XVB universal range, this module allows for the seamless vertical stacking of up to five illuminated units or audible buzzers. Its modular design ensures a secure mechanical and electrical connection, giving you the flexibility to customize visual alerts from steady lights to flashing beacons tailored to your specific manufacturing floor requirements.
- Boasting a rugged, high-degree IP66 ingress protection rating, this base unit is fully sealed against powerful water jets, fine dust, and heavy condensation. Whether installed in food processing plants requiring frequent sanitation or oily CNC machining environments, the durable construction prevents internal corrosion and ensures consistent uptime for your critical safety indicators.
- Designed to operate on a standard 230V AC supply, this base unit eliminates the need for external step-down transformers in high-voltage control environments. This direct-to-line compatibility simplifies your wiring schematic and reduces panel clutter, making it an ideal choice for large-scale manufacturing facilities and automated assembly lines where 230V infrastructure is the standard.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Communications & Management Attributes
- Communication Port Protocol
- -, -
Physical Attributes
- Housing Color
- dark grey, dark grey
Complementary Attributes
- Rated Operational Voltage Limits
- 90...264 V AC
Important Information Attributes
- Housing Color
- dark grey, dark grey
- Certificate Agency
- cULus, CCC, RCM, UKCA, CE
- Carbon Footprint Of The Distribution Phase [A4]
- 0.08953619136521962, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0014257833215503086, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Pre Comm Date
- 2025-02-06
- Stocking Flag
- N
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Product Kit Identifier
- N
- Cable Entry
- bottom
- Device Composition
- Base direct/tube & cover
- Electrical Connection
- AC
- Fixing Mode
- direct or tube fixing
- Mounting Diameter
- 70 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XVB7
- Shock Resistance
- 30 gn 6 ms) in operation
- Sustainable Packaging
- No
- Vibration Resistance
- 6 gn +/- 0.5 mm 10-500 Hz)in operation
- Pep Code
- ENVPEP2501029EN
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ue] Rated Operational Voltage
- 100...240 V AC 50/60 Hz120 V DC
- [Uimp] Rated Impulse Withstand Voltage
- 2.5 kV
- Package Weight(Lbs)
- 261.000 g
- Warranty (In Months)
- 18

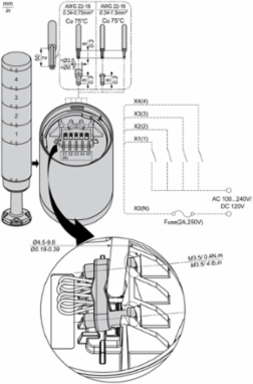

Connections Terminals 8 Connections Terminalsspring clamp terminals (push 'n stay)
Connections - Terminalsspring clamp terminals (push 'n stay), 5 x 0.34...5 x 1.5 mm² with cable end, spring clamp terminals (push 'n stay), 5 x 0.34...5 x 1.5 mm² without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.3 kg CO2 eq., 0.2557577383360217
Carbon Footprint Of The Manufacturing Phase [A1 To A3]3 kg CO2 eq., 3.0878094793960447
Local Data StatusPublishable
Pre Comm Announcement Date2025-02-06
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2501029EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2447
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Assembly StyleUp to 4 Modules (3 lens + 1 sound or 4 lens)
Current Consumption3 mA
Device Short NameXVB7
Electrical Shock Protection Classclass II
Materialpolycarbonate
Mounting Positionupright/inverted
Product Or Component Typebase module
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionThe major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; Germany, DE
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %87
[Ui] Rated Insulation Voltage264 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8531909001
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 3.4345291924188364
- Environmental Disclosure
- ENVPEP2501029EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionUL type 4X/13
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- base module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC001152
ETIM 9EC001152
Output Attributes
- Output Current
- 230 mA max
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
