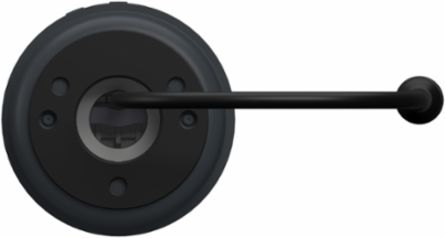

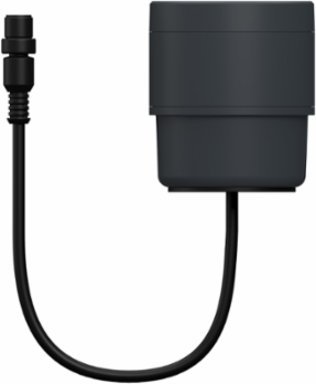

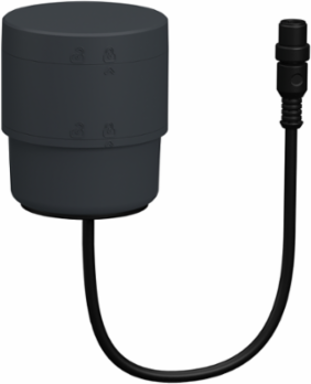

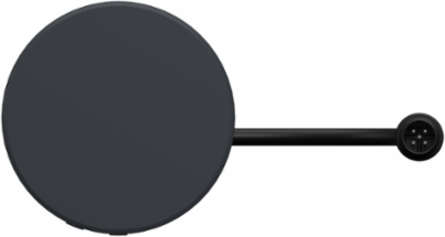

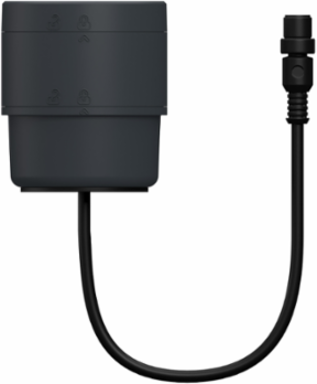

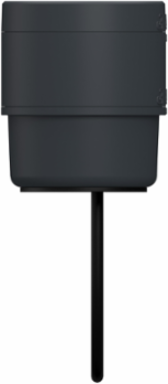

Schneider Electric XVB7C61 Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, M12 Connector Base With Adapter And Cover, Grey
- MPN: XVB7C61
- PPN: SCH-XVB7C61
CAD
$142.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Base Module, Harmony XVB7 Modular Tower Light, Ø70mm, M12 Connector Base With Adapter And Cover, Grey
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Germany, France, Indonesia, Philippines, United States
Communications & Management Attributes
- Communication Port Protocol
- -, -
Physical Attributes
- Housing Color
- dark grey, dark grey
Complementary Attributes
- Rated Operational Voltage Limits
- 21.6...26.4 V AC/DC
Important Information Attributes
- Housing Color
- dark grey, dark grey
- [Ue] Rated Operational Voltage
- 24 V AC 50/60 Hz, 24 V DC
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.17164079736424612
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 2.0722504218272904
- Local Data Status
- Publishable
- Pre Comm Announcement Date
- 2025-02-06
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2501029EN
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2445
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Assembly Style
- Up to 4 Modules (3 lens + 1 sound or 4 lens)
- Device Composition
- Base direct/tube & cover
- Electrical Connection
- M12
- Fixing Mode
- direct or tube fixing
- Mounting Diameter
- 70 mm
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony XVB7
- Shock Resistance
- 30 gn 6 ms) in operation
- Sustainable Packaging
- No
- Type Of Cable
- M12 cable 15cm
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2501029EN
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; Germany, DE
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential, In %
- 87
- [Uimp] Rated Impulse Withstand Voltage
- 0.5 kV
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Certificate AgencycULus, CCC, RCM, UKCA, CE
Carbon Footprint Of The Distribution Phase [A4]0.06008836087959548, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0009568531054885027, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]64 kg CO2 eq., 63.68600174441161
Local Publishable Date2026-03-26
Pre Comm Date2025-02-06
Stocking FlagN
Weee ApplicabilityFinished product
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label3
Without Single Use PlasticYes
Product Kit IdentifierN
Current Consumption0 mA
Device Short NameXVB7
Electrical Shock Protection Classclass II
Materialpolycarbonate
Mounting Positionupright/inverted
Product Or Component Typebase module
ReturnabilityYes
Software Versionv6.2.4
Total Lifecycle Carbon Footprint66 kg CO2 eq.
Vibration Resistance6 gn +/- 0.5 mm 10-500 Hz)in operation

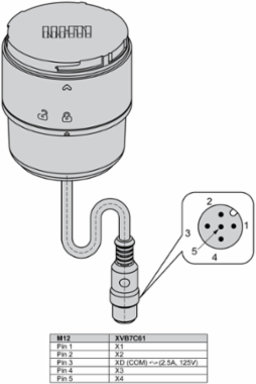

Connections Terminals 8 Connections TerminalsM12, 5 Pol Male, A-Coded port
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review

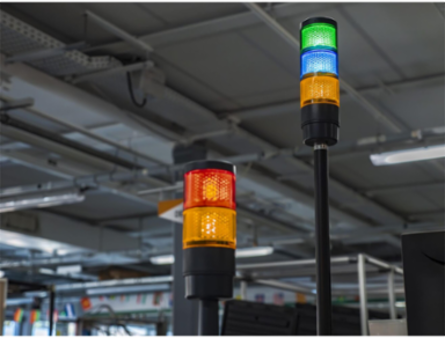

Functional-unit DescriptionThe major function of the Harmony XVB7 range of products is to offer optical or audio signalling to operators, technicians, supervisors and other people who are engaged in the work specifically to identify the various states or sequences of a machine or installation from a distance through 360° in life span of 10 years.This product will be active for 73% of the time with a power consumption of 8.4W and adhering to standards IEC 60947-5-1.
Functional-unit Unitunit
Energy Consumption On Product Lifetime, In Kwh131.4
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ui] Rated Insulation Voltage50 V
Connections - TerminalsM12, 5 Pol Male, A-Coded port
Package Weight(Lbs)180.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-60 °C, -25-60 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 65.99093817758823
- Environmental Disclosure
- ENVPEP2501029EN
- Ip Degree Of Protection
- IP66
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-28
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI2501029EN
Eu Rohs DirectiveCompliant By Exemption
Nema Degree Of ProtectionType 4/4X/12/13 indoor use only
Packaging Without Single Use PlasticYes
Pep CodeENVPEP2501029EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- base module
Range Of ProductHarmony XVB7
ETIM
- ETIM 8
- EC001152
ETIM 9EC001152
Output Attributes
- Output Current
- 2000 mA max
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
