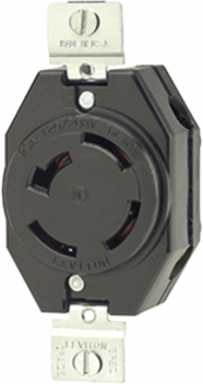

Leviton 7410-B 20 Amp Flush Mount Locking Receptacle, 120/208 Volt, 3-Phase WYE, 4-Pole
- MPN: 7410-B
- UPC: 078477821633
- PPN: LEV-7410-B
CAD
$64.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

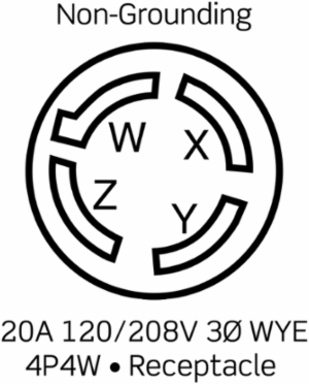

20 Amp, 120/208 Volt 3-Phase Y, Non-NEMA, 4P, 4W, Flush Mounting Locking Receptacle, Industrial Grade, Non-Grounding - BLACK
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade locking receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
RoHS CompliantFalse
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL498
- File E13399
CSA C22.2 No. 42File LR-406
NOM057
WarrantyLimited Lifetime Warranty Warranty
Material Specifications
- Base Material
- Nylon
- Grounding Screw
- Brass 8-32
- Strap Material
- Nickel-Plated Brass
- Yoke
- Nickel-Plated Brass .050 Thick
Face MaterialNylon
Line ContactsBrass .040 Thick
Terminal ScrewsBrass 10-32
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Termination
- Back & Side
Screw Terminal Torque14-18 in-lbs
Terminal IDBrass-Hot, Silver-Neutral
Product Features
- Color
- Black
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase WYE
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 4
Current LimitingFull Rated Current
GroundingNon-Grounding
Pole4
Voltage120/208 VAC
