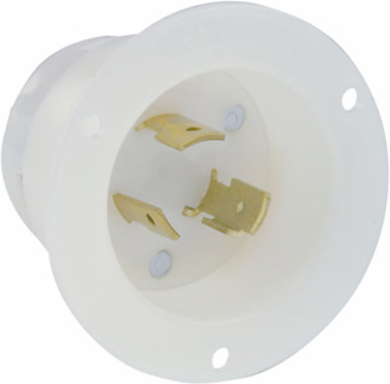

Leviton 2365 Industrial Grade 20 Amp 125/250 Volt Locking Receptacle NEMA L10-20P
Leviton 2365 Industrial Grade 20 Amp 125/250 Volt Locking Receptacle NEMA L10-20P
- MPN: 2365
- UPC: 078477805930
- PPN: LEV-2365
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$70.34/ EA
Description

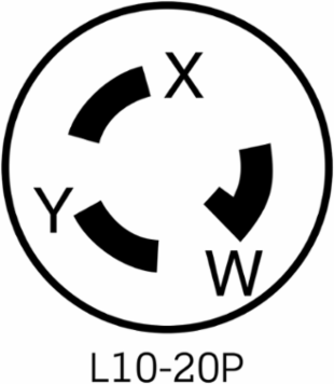

20 Amp, 125/250 Volt, NEMA L10-20P, 3P, 3W, Flanged Inlet Locking Receptacle, Industrial Grade, Non-Grounding - WHITE
Features
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- 10-year limited warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13393
- Warranty
- Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13393
Material Specifications
- Body Material
- Nylon
- Face Material
- Nylon
- Line Contacts
- Solid Brass
- Terminal Screws
- Brass 10-32
ColorWhite
Grounding ScrewBrass 8-32
Strap MaterialThermoplastic Nylon
Mechanical Specifications
- Product ID
- Ratings and NEMA I.D. permanently marked on device
- Terminal Accom.
- 18-10 AWG
- Termination
- Back
Screw Terminal Torque10-14 in-lbs
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Black and White
Device TypeLocking Flanged Inlet
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated V-2 per UL 94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Pole
- 3
- Voltage
- 125/250 VAC
Current LimitingFull Rated Current
GroundingNon-Grounding
Temperature RiseMax 30C after 250 cycles OL at 200 percent rated current
Wire3
AC Horsepower Ratings
- At Rated Voltage
- 2 HP L-L / 1 HP L-N
