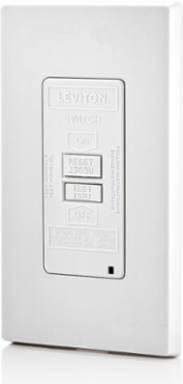

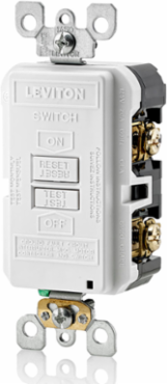

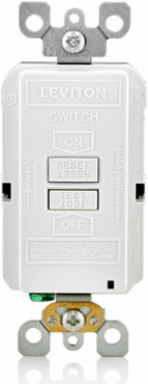

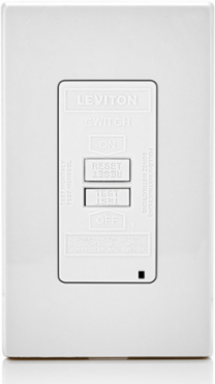

Leviton GFRBF-W 20 Amp Self-Test Blank Face GFCI Receptacle with LED Indicator Light
- MPN: GFRBF-W
- UPC: 078477714577
- PPN: LEV-GFRBF-W
CAD
$48.64
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
20 Amp Feed-Through, 125 Volt, Self-Test SmartlockPro® Blank Face GFCI Receptacle/Outlet, Monochromatic, Back and Side Wired, Wallplate/Faceplate Sold Separately. Self-Grounding Clip Included – White
Features
- Provides continuous ground fault protection – detects and trips on actual ground fault even when self-test is being conducted
- On initial power up, tests the GFCI within 3 seconds
- Auto-monitoring exceeds the UL requirement
- Auto adapts and shifts to more frequent testing if potential problem is detected
- Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal
- Patented Lockout Action prevents reset if GFCI is damaged and cannot respond to a ground fault
- Electronics are designed to minimize any false triggers
- Reduced depth makes it easier to install in any electrical box, even shallow ones
- Terminals allow for easy wiring options – back and side wire capable
- External back wire clamps provide visual indication of proper wire seating
- Withstands high torque and resists wire pullout
- Standard brass self-grounding clip
- Trip threshold meets or exceeds UL requirements for tripping time
- Improved immunity to high-frequency noise reduces nuisance tripping
- Advanced electronics design provides superior resistance to electrical surges and over-voltages
- Compatible with all Decora devices and wallplates; available in select Decora colors
- UL Fed Spec WC-596 rated
- SAFE – Delivers continuous ground fault protection
- SELF TESTING – Automatically self-tests to ensure it can respond to ground fault
- SIMPLE – Status indicator light provides simple, intuitive feedback
- COMPATIBLE – Device designed to improve immunity for reduced HF nuisance tripping
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A Feed-Through
- Trip Level
- Class A, 5mA ±1mA
- At Rated Voltage
- 1 HP
- Termination
- Back & Side Wired
- Temperature Rise
- Max 30°C after 100 cycles OL at 150% rated current
- Poles
- 2
- Strap Material
- Galvanized Steel
- Face Material
- Thermoplastic
- Terminal Screws
- Plated Steel
- Clamps
- Brass
- Screw Terminal Torque
- 14-18 in-lbs
- Wire
- 3
- Standards and Certifications
- UL Listed, CSA Certified, NOM Certified, Fed Spec WC-596, UL 943 File E48380, CSA-C22.2 No. 42, CSA-C22.2 No. 144.1-06 File LR-57811, ANSI C-73, NEMA WD-6
- Surge Resistance
- Advanced electronics provide superior resistance to surges and over-voltages
- Self-Test
- Auto-monitoring with continuous self-test
- Color
- White
- Country of Origin
- China
Voltage125 V AC
Short Circuit Current Rating10 kA
Operating Temperature-35°C to +66°C
Tamper ResistantNo
Dielectric VoltageWithstands 1250 VAC per UL 943 and CSA-C22.2 No. 144.1-06
Yoke MaterialZinc-Plated Steel
Body MaterialPolycarbonate
Terminal IDBrass-Hot, Green-Ground, Silver-Neutral
Grounding ScrewPlated Steel
Terminal Accommodation14-10 AWG
High Torque TerminalWithstands high torque and resists wire pullout
GradeResidential/Commercial Specification Grade
RoHS CompliantNo
Lockout ActionPatented reset lockout prevents reset if damaged
Status IndicatorLED status indicator light with power and protection feedback
BrandSmartlockPro
