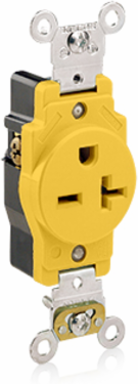

Leviton 5461-CR 20 Amp Corrosion-Resistant Narrow Body Single Receptacle, NEMA 6-20R, 250 Volt
- MPN: 5461-CR
- UPC: 078477106600
- PPN: LEV-5461-CR
CAD
$63.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
20 Amp, 250 Volt, NEMA 6-20R, 2P, 3W, Narrow Body Single Receptacle, Straight Blade, Industrial Grade, Grounding, Corrosion Resistant, Side Wired, Nickel-Plated Brass Strap, - Yellow
Features
- Leviton’s line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractor's choice for use in factories, schools, hospitals and commercial office buildings. For use in marine and industrial environments.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-6 |
| UL | 498 |
| Warranty | Limited Lifetime Warranty |
| CSA C22.2 No. 42 | File LR-406 |
|---|---|
| NOM | 057 |
| UL Fed Spec WC-596 | File E13399 |
Material Specifications
| Assembly Screws | Stainless Steel 300 |
|---|---|
| Body Material | Santoprene TPV |
| Color | Yellow |
| Terminal Screws | Nickel-Plated Brass |
| Blades/Contacts | Nickel-Plated Brass |
|---|---|
| Bushing | Santoprene TPV |
| Compression Nut, Strain Relief | Nylon |
| Wire Module | Thermoplastic |
Mechanical Specifications
| Cord Range | .375 - .655 |
|---|---|
| Terminal Accom. | 18-10 AWG |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, Silver-Neutral |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 250 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
