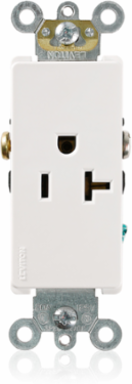

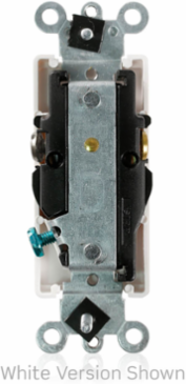

Leviton 16351-W Decora Plus 20 Amp Single Outlet, Smooth Face, NEMA 5-20R, Self-Grounding
- MPN: 16351-W
- UPC: 078477473863
- PPN: LEV-16351-W
CAD
$23.82
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Plus Single Receptacle Outlet, Commercial Specification Grade, Smooth Face, 20 Amp, 125 Volt, Back or Side Wire, NEMA 5-20R, 2-Pole, 3-Wire, Self-Grounding - White
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Please Contact Customer Service |
|---|
| RoHS Compliant | True |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NOM | 057 |
| NEMA | WD-6 |
|---|---|
| UL498 | File E13399 |
Material Specifications
| Body Material | Thermoplastic Nylon |
|---|---|
| Face Material | Thermoplastic Nylon |
| Grounding Screw | Brass 8-32 |
| Terminal Screws | Brass 10-32 |
| Clamp Nuts | Zinc-Plated Steel |
|---|---|
| Ground Clips | Brass-Plated |
| Line Contacts | Brass Triple-Wipe .031 Thick |
| Yoke | Zinc-Plated Steel |
Mechanical Specifications
| Product ID | Ratings are permanently marked on device |
|---|---|
| Terminal Accom. | 14-10 AWG |
| Termination | Back or Side Wire |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Brass-Hot, Green-Ground, White-Neutral |
Product Features
| Brand | Decora Plus |
|---|---|
| Device Type | Single Receptacle Outlet |
| Grade | Commercial Specification Grade |
| Strap Material | Steel |
| Color | White |
|---|---|
| Feature 4 | Smooth Face |
| Standards and Certifications | UL |
| Warranty | 10-Year Limited |
Environmental Specifications
| Flammability | Rated V-2 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 125 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Self-Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| At Rated Voltage | 1 HP |
|---|
