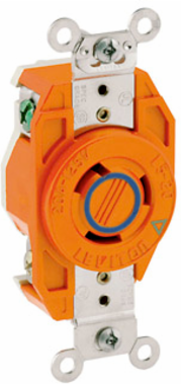

Leviton 2320-IG 20 Amp 250 Volt Industrial Grade Flush Mount Locking Receptacle NEMA L6-20R Orange
- MPN: 2320-IG
- UPC: 078477801215
- PPN: LEV-2320-IG
CAD
$66.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

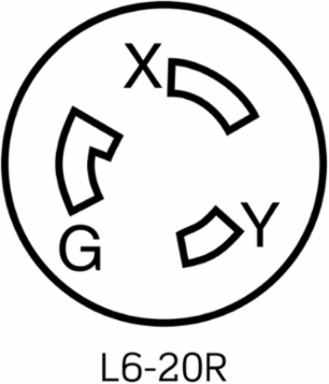

20 Amp, 250 Volt, NEMA L6-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Isolated Ground, V-0-MAX - ORANGE
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL | 498 |
| CSA | C22.2 No. 42 |
|---|---|
| NOM | 057 |
Material Specifications
| Base Material | Valox |
|---|---|
| Color | Orange |
| Face Material | Valox |
| Ground Contacts | Brass |
| Line Contacts | Brass |
| Terminal Screws | Chromated Brass |
| Body Material | Valox 357 |
|---|---|
| Cover Material | Valox 357 |
| Ground Clips | Nickel-Plated Brass |
| Grounding Screw | Chromated Brass |
| Strap Material | Nickel-Plated Brass |
Mechanical Specifications
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom. | 14-8 AWG |
| Termination | Back & Side |
| Screw Terminal Torque | 14-18 in-lbs |
|---|---|
| Terminal ID | Marked on Device |
| Torque Range | 14-16 in-lbs |
Product Features
| Brand | V-0-Max |
|---|
Warranty
| Warranty | Limited Lifetime Warranty |
|---|
Environmental Specifications
| Environment | Corrosive |
|---|---|
| Operating Temperature | -40°C to 60°C |
| Flammability | Rated V-0 per UL 94 |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 250 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Isolated Ground |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
AC Horsepower Ratings
| Horsepower Rating | 2 HP |
|---|
