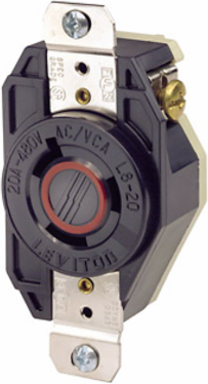

Leviton 2340 20 Amp Flush Mount Locking Receptacle, 480 Volt, NEMA L8-20R, Industrial Grade
- MPN: 2340
- UPC: 078477044940
- PPN: LEV-2340
CAD
$56.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

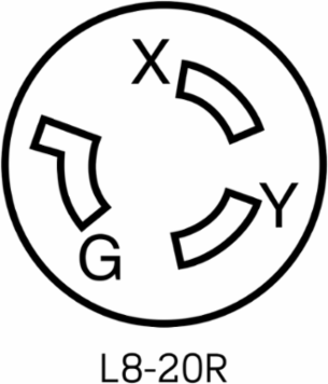

20 Amp, 480 Volt, NEMA L8-20R, 2P, 3W, Flush Mtg Locking Receptacle, Industrial Grade, Grounding, V-0-MAX - BLACK
Features
- Leviton’s Industrial Grade Locking Devices are built to provide unparalleled quality and superior performance in the most severe industrial settings. Leviton combines the best materials available with superior production standards to produce a broad selection of Locking Devices of unmatched flexibility and dependability.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
| RoHS Compliant | False |
|---|
Standards and Certifications
| ANSI | C-73 |
|---|---|
| NEMA | WD-1 & WD-6 |
| UL | 498 |
| CSA | C22.2 No. 42 |
|---|---|
| NOM | 057 |
| UL Fed Spec | W-C-596 |
Material Specifications
| Base Material | Valox |
|---|---|
| Color | Black |
| Face Material | Ultramid |
| Grounding Screw | Chromated Brass |
| Strap Material | Nickel-Plated Brass |
| Terminal Screws | Chromated Brass |
| Body Material | Nylon |
|---|---|
| Cover Material | Valox 357 |
| Ground Contacts | Brass |
| Line Contacts | Brass |
| Terminal Clamps | Nickel-Plated Brass |
Mechanical Specifications
| Cord Range | 0.595 to 0.895 |
|---|---|
| Screw Terminal Torque | 14-18 in-lbs |
| Terminal ID | Marked on Device |
| Product ID | Ratings and NEMA I.D. permanently marked on device |
|---|---|
| Terminal Accom. | 14-8 AWG |
| Termination | Back & Side |
Warranty
| Warranty | Limited Lifetime Warranty |
|---|
Environmental Specifications
| Flammability | Rated V-0 per UL 94 |
|---|
| Operating Temperature | -40°C to 60°C |
|---|
Electrical Specifications
| Amperage | 20 A |
|---|---|
| Dielectric Voltage | Withstands 2000V per UL498 |
| Pole | 2 |
| Voltage | 480 VAC |
| Current Limiting | Full Rated Current |
|---|---|
| Grounding | Grounding |
| Temperature Rise | Max 30C after 250 cycles OL at 200 percent rated current |
| Wire | 3 |
