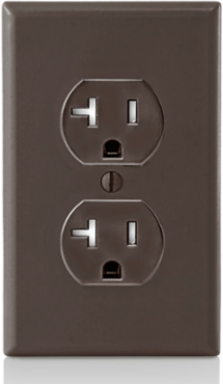

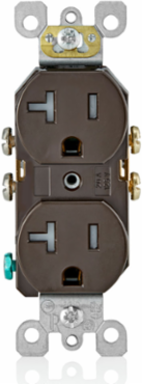

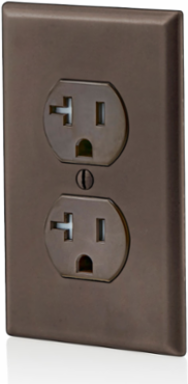

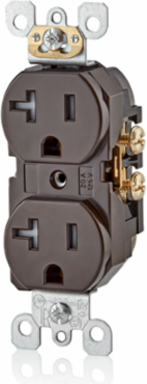

Leviton T5820 20 Amp Tamper-Resistant Duplex Outlet, 125 Volt, NEMA 5-20R, Brown
Leviton T5820 20 Amp Tamper-Resistant Duplex Outlet, 125 Volt, NEMA 5-20R, Brown
- MPN: T5820
- UPC: 078477450222
- PPN: LEV-T5820
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$5.52/ EA
Description
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Brown
Features
- Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out
- TR symbol on receptacle face assures they meet the NEC Section 406.11 code requirements
- Ultrasonically welded for additional assembly security
- Base and face made of high impact thermoplastic
- Convenient break-off plaster ears for best flush alignment
- Self-grounding clip staked on, will never fall off
- Easily accessible break-off tabs when split feed wiring is required; allows easy two circuit conversion
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- SAFE - Tamper-Resistant offers protection from electrical shocks
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Side wiring for easy installation
- CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
Specifications
Standards & Certifications
- CSA C22.2 No. 42
- File 152105; Class 6233-01
- UL 498
- File E13399
NOMNOM Certified
Product Features
- Amperage
- 20 A
- Color
- Brown
- Face Material
- Thermoplastic Nylon
- Grounding
- Self-Grounding
- Pole
- 2
- Terminal Accom.
- Side wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- Torque Range
- 14 – 18 in.-lbs
- Voltage
- 125 VAC
Body MaterialThermoplastic Nylon
Device TypeDuplex Receptacle
FeatureTamper-Resistant
NEMA5-20R
Product TypeStandard
TerminationSide
TypeDuplex Receptacle
Wire3
Specifications
- Country of Origin
- China
RoHS CompliantFalse
