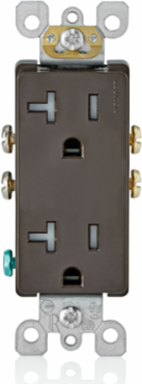

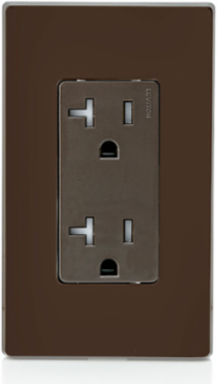

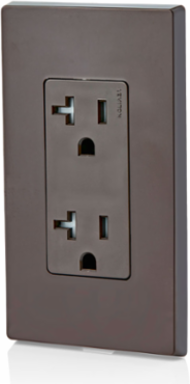

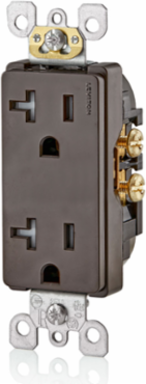

Leviton T5825 20 Amp Decora Tamper-Resistant Duplex Outlet, 125 Volt, NEMA 5-20R, Side Wired
- MPN: T5825
- UPC: 078477450499
- PPN: LEV-T5825
CAD
$7.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – Brown
Features
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- SAFE – Tamper-Resistant offers protection from electrical shocks
- DURABLE – Impact-resistant thermoplastic nylon construction
- EASY – Side wiring for easy installation
- CONVENIENT – TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Torque Range
- 14–18 in.-lbs
- NEMA
- 5-20R
- Termination
- Side
- Blade Style
- Straight
- Wiring
- 3-Wire
- Material
- Impact-resistant thermoplastic nylon
- UL 498
- File E13399
- RoHS Compliant
- False
- Country of Origin
- China
Voltage125 VAC
TypeDuplex Receptacle
Terminal AccommodationSide wiring accepts #10 and #12 AWG copper (CU) or #10 copper clad (CC)
Wiring MethodSide Wired Only
Pole2
GroundingSelf Grounding
NOMNOM Certified
CSA C22.2 No. 42File 152105; Class 6233-01
ColorBrown
