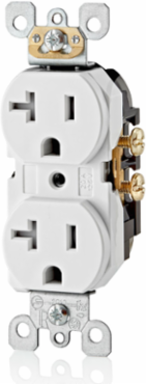

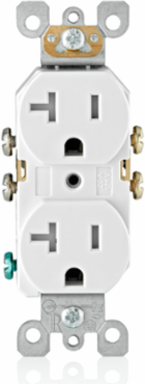

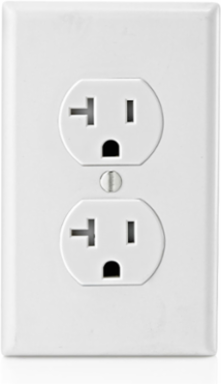

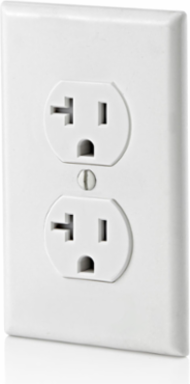

Leviton T5820-W 20 Amp Duplex Tamper-Resistant Outlet, 125 Volt, NEMA 5-20R, Self-Grounding, White
- MPN: T5820-W
- UPC: 078477450215
- PPN: LEV-T5820-W
CAD
$5.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20 Amp, 125 Volt, NEMA: 5-20R, Pole: 2, 3-Wire, Tamper-Resistant, Duplex Receptacle/Outlet, Straight Blade, Self Grounding, Side Wired Only, NEC compliant – White
Features
- Mechanical shutter mechanism prevents access to contacts unless a two-pronged plug is inserted, helping ensure that foreign objects will be locked out
- TR symbol on receptacle face assures they meet the NEC Section 406.11 code requirements
- Ultrasonically welded for additional assembly security
- Base and face made of high impact thermoplastic
- Convenient break-off plaster ears for best flush alignment
- Self-grounding clip staked on, will never fall off
- Easily accessible break-off tabs when split feed wiring is required; allows easy two circuit conversion
- Terminal screws accept #10 and #12 AWG copper (CU) or #10 copper clad (CC) wire
- SAFE - Tamper-Resistant offers protection from electrical shocks
- DURABLE - Impact-resistant thermoplastic nylon construction
- EASY - Side wiring for easy installation
- CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| NEMA | 5-20R |
| Wires | 3 |
| Terminal Accommodation | Side wiring accepts #10 and #12 AWG copper or #10 copper clad wire |
| Body Material | Thermoplastic Nylon |
| Grounding | Self-Grounding |
| Type | Duplex Receptacle |
| UL 498 | File E13399 |
| RoHS Compliant | False |
| Pole | 2 |
| Wire | 3 |
| Country of Origin | China |
| Voltage | 125 VAC |
|---|---|
| Poles | 2 |
| Torque Range | 14 18 in.-lbs |
| Device Type | Duplex Receptacle |
| Face Material | Thermoplastic Nylon |
| Color | White |
| NOM | NOM Certified |
| CSA C22.2 No. 42 | File 152105; Class 6233-01 |
| Feature | Tamper-Resistant |
| Product Type | Standard |
| Termination | Side |
