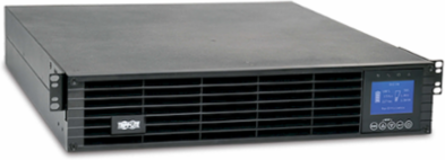

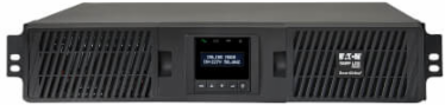

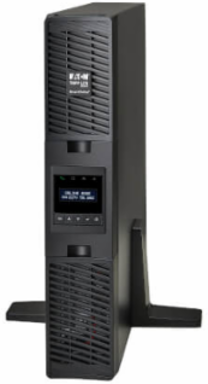

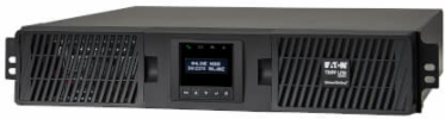

Tripp Lite SUINT3000LCD2U 3000VA 2.7kW Double-Conversion UPS, 10 Outlets, 2U, LCD Display
Tripp Lite SUINT3000LCD2U 3000VA 2.7kW Double-Conversion UPS, 10 Outlets, 2U, LCD Display
- MPN: SUINT3000LCD2U
- UPC: 037332185631
- PPN: TRP-SUINT3000LCD2U
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$4668.28/ EA
Features
- Offers network-grade protection against power failures and voltage fluctuations
- Zero transfer time between on-line and battery modes for uninterrupted operation
- Optional external battery packs provide additional runtime for applications requiring it
- Optional WEBCARDLX network interface required to use Auto Probe feature
- ENERGY STAR-certified to save electricity, lower costs, and protect the environment
- 2-year limited warranty
- $250,000 Ultimate Lifetime Insurance
- Double-Conversion UPS Protects Equipment against Damage, Downtime and Data Loss
- Set Power Strategies to Reflect Your Protection Priorities
- Individually Controllable Load Banks Let You Access and Control Outlets Remotely
- Reliable, Expandable Battery Backup Keeps You Operational Through Power Outages
- Automatic Bypass Maintains Utility Output During Fault Conditions
- ENERGY STAR-Certified Economy Mode Helps You Save Money and Protect the Environment
- Automatically Turns Back On After Power Is Restored
- Intuitive Front-Panel Interface for Convenient UPS Operation and Monitoring
- Advanced Communications Ports Allow for Automatic Saves and Shutdowns
- Optional WEBCARDLX Network Interface Offers 24/7 Access
- Versatile Installation Options
Specifications
Surge / Noise Suppression
- UPS Dataline Suppression Details
- Single line dialup / network dataline protection included
- AC Suppression Joule Rating
- 570
EMI / RFI AC Noise SuppressionYes
AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 5 min. (2700w)
- Expandable Battery Runtime
- Supports extended runtime with optional external battery packs
- DC System Voltage (VDC)
- 72
- Internal UPS Replacement Battery Cartridge
- RBC72S
- Battery Replacement Description
- Hot-swappable, replaceable batteries
Half Load Runtime (min.)13.5 min. (1350w)
External Battery Pack CompatibilityBP72V15-2U (limit 1); BP72V28RT-3U (multi-pack compatible); BP72V18 -2US (multi-pack compatible)
Battery Recharge Rate (Included Batteries)3.0 hours from 10% to 90% (typical, full load discharge)
Battery AccessFront panel battery access door
Expandable RuntimeYes
Certifications
- UPS Certifications
- CE; ENERGY STAR Qualified; Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to EAC (Belarus, Kazakhstan, Russia); Tested to SASO (Saudi Arabia); Tested to UL1778 (USA)
UPS Certification DetailsMeets EMI approvals IEC62040-2:2006; FCC Part 15
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth with External Battery Pack (cm)
- 77
- Minimum Required Rack Depth without External Battery Pack (cm)
- 70
- Primary Form Factor
- Rackmount
- Primary UPS Height (mm)
- 88
- Rack Height
- 2U
- Shipping Weight (lbs.)
- 86.00
- UPS Power Module Dimensions (hwd, in.)
- 3.46 x 17.24 x 24.25
- UPS Power Module Weight (lbs.)
- 68.72

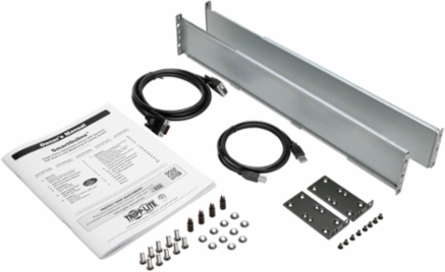

Included Mounting Accessory Description4 post installation accessories included

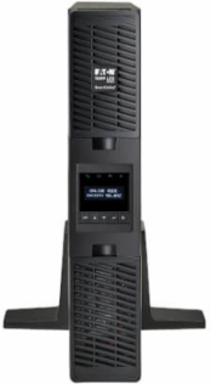

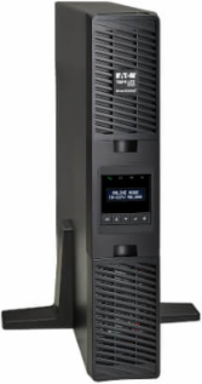

Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); Tower ( 2-9USTAND )
Minimum Required Rack Depth with External Battery Pack (in.)30.25
Minimum Required Rack Depth without External Battery Pack (in.)27.75
Primary UPS Depth (mm)616
Primary UPS Width (mm)438
Shipping Dimensions (hwd / in.)9.45 x 23.62 x 29.92
UPS Housing MaterialMetal
UPS Power Module Weight (kg)31.17
User Interface, Alerts & Controls

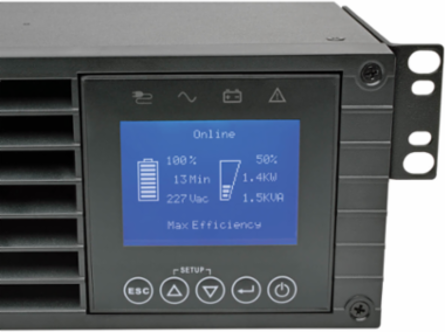

- Front Panel LCD Display
- Interactive front-panel LCD interface reports UPS operating mode, detailed UPS status and site-power information; LCD interface also enables a variety of advanced UPS setup and configuration options
- Alarm Cancel Operation
- Power-fail alarm can be silenced by following on-screen prompts
- LED Indicators
- 4 front panel LEDs: AC input (green), AC output (green), Battery (yellow), Fault (red)
Switches5 front panel switches: On/Off, Up, Down and Escape
Audible AlarmAudible alarm indicates power failure, low battery, overload and fault
Voltage Regulation
- Voltage Regulation Description
- Online, double-conversion power conditioning
- Undervoltage Correction
- 2% output voltage regulation during undervoltages to 160V (100% load), 130V (70% load), 100V (30% load)
Overvoltage Correction2% output voltage regulation during overvoltages to 288
Input
- Rated input current (Maximum Load)
- 14.97A
- UPS Input Connection Type
- C20 inlet
Nominal Input Voltage(s) Supported200V AC; 208V AC; 220V AC; 230V AC; 240V AC
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 3000
- Output Watt Capacity (Watts)
- 2700
- Power Factor
- 0.9
- Nominal Voltage Details
- Nominal output voltage is user configured on first power-on
- Frequency Compatibility Details
- Output frequency matches input nominal on startup; Output capacity de-rates by 30% during frequency conversion operation
- Output Voltage Regulation (Economy Line Mode)
- +/- 10%

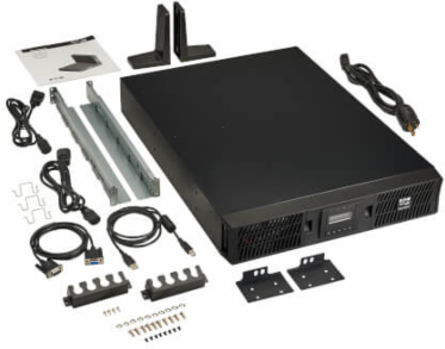

- Included Output Power Cables
- Includes 2 C13 to C14 and 1 C19 to C20 power cables
- Output AC Waveform (AC Mode)
- Pure Sine wave
- Output Capacity Details
- DE-RATING INFORMATION: Max output in Frequency Conversion mode is reduced to 1890 watts for 208/220/230/240V output voltages; Max output is reduced to 2160W at 200V output voltage in all operating modes OVERLOAD CAPACITY: Supports inverter operation up to 105% load continuously, 125% for 3 minutes, 150% for 30 seconds and >150% for 0.5 seconds before switching to BYPASS (when bypass input voltage and frequency are WITHIN bypass limits) or SHUTDOWN (when bypass input voltage or frequency are OUTSIDE bypass limits).

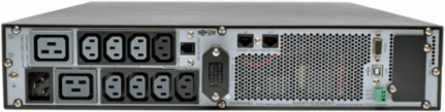

- Output Receptacles
- (8) C13; (2) C19
Output kVA Capacity (kVA)3
Output kW Capacity (kW)2.7
Crest Factor3:1
Frequency Compatibility50 / 60 Hz; Supports 50 to 60 Hz and 60 to 50 Hz conversion
Output Voltage Regulation (Line Mode)+/- 2%
Output Voltage Regulation (Battery Mode)+/- 2%
Load Management ReceptaclesTwo switchable 4 outlet load banks (3 C13 and 1 C19 per bank)
Output AC Waveform (Battery Mode)Pure Sine wave
Nominal Output Voltage(s) Supported200V; 208V; 220V; 230V; 240V
Individually Controllable Load BanksYes
Communications
- Network Management Cards
- SNMPWEBCARD ; WEBCARDLX
- Communications Cable
- USB and DB9 cabling included
- Communications Interface
- USB (HID enabled); DB9 Serial; Contact closure; EPO (emergency power off); Slot for SNMP/Web interface
PowerAlert SoftwareFor local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
WatchDog CompatibilitySupports Watchdog application, OS and hard-reboot restart options for remote applications
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius.
- Relative Humidity
- 5 to 95%, non-condensing
- AC Economy Mode BTU / Hr. (Full Load)
- 485
- AC Mode Efficiency Rating (100% Load)
- >90%
- Audible Noise
- <50dB at front side 1M
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius.
AC Mode BTU / Hr. (Full Load)933
Battery Mode BTU / Hr. (Full Load)1399
AC Economy Mode Efficiency Rating (100% Load)>95%
Operating Elevation (m)Up to 3000m
Overview
- UPC Code
- 037332185631
UPS TypeOn-Line
Special Features
- Grounding Lug
- Back panel grounding lug included
- High Availability UPS Features
- Automatic inverter bypass; Battery Independent Restart; Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Green Energy-Saving FeaturesHigh efficiency economy mode operation; Individually controllable load banks
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- No transfer time (0 ms.) in online, double-conversion mode; 4 ms. transfer time during economy mode operation
- High Voltage Transfer to Battery Power (Setpoint)
- 288V
Low Voltage Transfer to Battery Power (Setpoint)160V (100% load), 140V (66% load), 120V (33% load)
