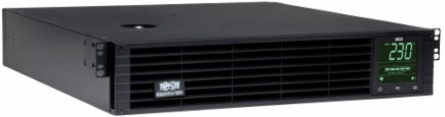

Tripp Lite SMX2200XLRT2UN UPS, Line-Interactive, 230V, 2200VA, 1920W, Sine Wave, 2U, Extended Run, WEBCARDLX, LCD, 8 Outlets
- MPN: SMX2200XLRT2UN
- UPC: 037332256430
- PPN: TRP-SMX2200XLRT2UN
CAD
$3959.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
SmartPro 230V 2200VA 1920W Line-Interactive Sine Wave UPS, 2U, Extended Run, WEBCARDLX, LCD, USB, DB9

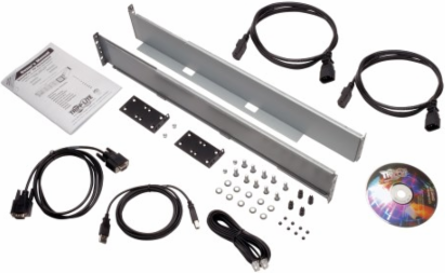

Features
- WEBCARDLX network management card
- USB cable
- DB9 cable
- EPO cable
- (3) C13-to-C14 AC power cords
- Rack-mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Dimensions
- UPS Input Connection Type
- C20 inlet
- Hot-Swap PDU Options
- PDUBHV20 (2U / 6 C13, 2 C19 outlets)
- DC System Voltage
- 48
- Battery Access
- Front panel battery access door

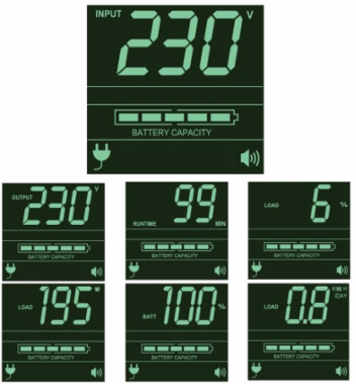

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
- Primary Form Factor
- Rackmount
- Minimum Required Rack Depth
- 23 in
- Primary UPS Height
- 89 mm
- UPS Power Module Dimensions
- 3.50 x 17.50 x 19.50 in
- Unit Weight
- 68.75 lb
- Network Management Cards
- WEBCARDLXE
- Communications Interface
- DB9 Serial; EPO (emergency power off); Pre-installed network card; Slot for SNMP/Web interface; USB (HID enabled)
Output Receptacle DetailsCompatible with Eaton Tripp Lite Power Cords
Output Receptacles(8) C13
Battery Recharge RateLess than 4.5 hours from 10% to 90%
Battery Replacement DescriptionHot-swappable, user replaceable batteries
Switches3 pushbutton switches control OFF/ON power status, MODE selection and MUTE/ENTER control functions
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Cooling MethodFan
Primary UPS Depth495 mm
Primary UPS Width445 mm
UPS Power Module Weight31.18 lb
Mounting DetailsIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Communications CableUSB, DB9 and EPO cabling included
Grounding DetailsBack panel grounding lug
Performance
- UPS Type
- Line-Interactive
- Rated Input Current
- 10.7A
- Maximum Input Amps
- 11
- Nominal Voltage Details
- 230V nominal output in battery mode
- Output Voltage Regulation
- -15%, +6%
- Expandable Runtime
- Yes
- Severe Undervoltage Correction
- Voltage boost of 24% applies when input voltage is between 158-182V
- Green Energy-Saving Features
- Greater than 95% efficiency - GREEN UPS; Individually controllable load banks
- Storage Temperature Range
- 5 to 122°F (-15 to 50°C)
- Audible Noise
- 45 dBA maximum, front side 1m
Input PhaseSingle-Phase
Input Circuit Breakers15A
Output Capacity2200 VA
Frequency Compatibility50 / 60 Hz (automatic frequency selection)
Output AC WaveformSine wave
Voltage Regulation DescriptionAutomatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278
AC Mode Efficiency Rating98%
Operating Temperature Range32 to 104°F (0 to 40°C)
Relative Humidity0-95% non-condensing
Reference
- UPS Applications
- Large Network; High-End Desktop/Small Network
Product Warranty Period2-year limited warranty
Material
- UPS Housing Material
- Steel
Battery TypeValve Regulated Lead Acid (VRLA)
