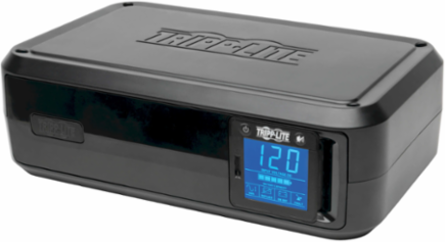

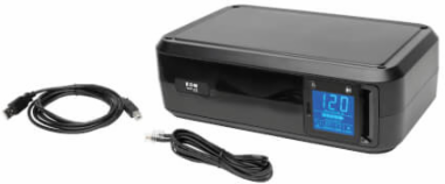

Tripp Lite SMART1000LCD SmartPro LCD 120V 1000VA 500W Line-Interactive UPS, AVR, Tower, USB, TEL/DSL/Coax Protection, 8 Outlets
Tripp Lite SMART1000LCD SmartPro LCD 120V 1000VA 500W Line-Interactive UPS, AVR, Tower, USB, TEL/DSL/Coax Protection, 8 Outlets
- MPN: SMART1000LCD
- UPC: 037332124999
- PPN: TRP-SMART1000LCD
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$448.23/ EA
Description
Provides reliable 1000VA/500W power protection for your desktop computer, network workstation, audio/video components or media center. Protects against surges, line noise, blackouts and brownouts.
Features
- Supports a basic desktop PC up to 60 min. during power outage

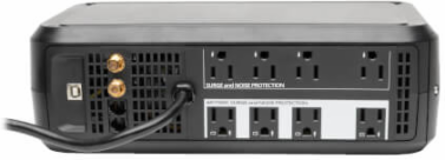

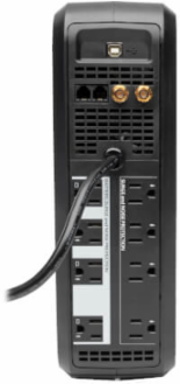

- Features 8 protected outlets—4 battery-protected, 4 surge-only
- Offers automatic voltage regulation (AVR)
- LCD screen reports real-time UPS and power status
- Plugs into any NEMA 5-15R socket
- 3-year limited warranty
- $250,000 Ultimate Lifetime Insurance
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 1038
- UPS Dataline Suppression
- 1 line TEL/DSL (1 in / 1 out); Coax jacks (1 set)
UPS AC Suppression Response TimeInstantaneous
EMI / RFI AC Noise SuppressionYes
Battery
- Full Load Runtime (min.)
- 3 min. (500w)
- DC System Voltage (VDC)
- 12
- Internal UPS Replacement Battery Cartridge
- RBC51
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)10 min. (250w)
Battery Recharge Rate (Included Batteries)Less than 16 hours from 10% to 90%
Battery AccessBattery access door
Expandable RuntimeNo
Certifications
- UPS Certifications
- Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Physical
- Installation Form Factors Supported with Included Accessories
- Tower
- Primary UPS Depth (mm)
- 184
- Primary UPS Width (mm)
- 93
- Shipping Weight (lbs.)
- 16.92
- UPS Power Module Dimensions (hwd, in.)
- 11.84 x 3.66 x 7.24
- UPS Power Module Weight (lbs.)
- 15.55

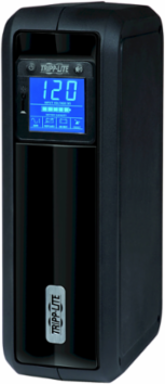

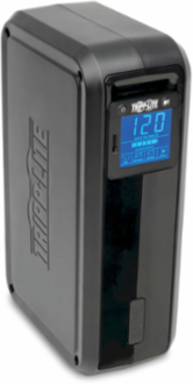

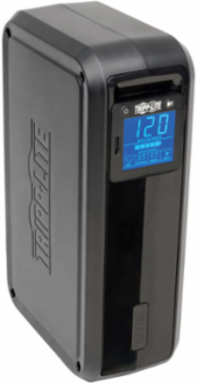

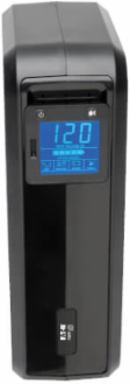

Primary Form FactorTower
Primary UPS Height (mm)301
Shipping Dimensions (hwd / in.)15.40 x 4.80 x 10.60
UPS Housing MaterialABS
UPS Power Module Weight (kg)7.05
User Interface, Alerts & Controls

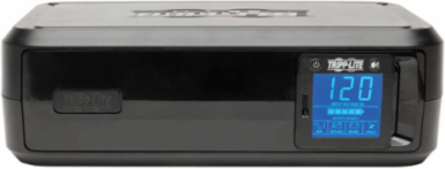

- Front Panel LCD Display

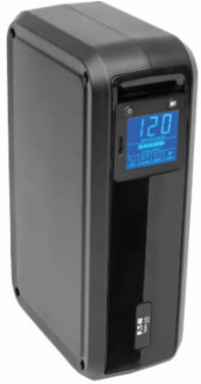

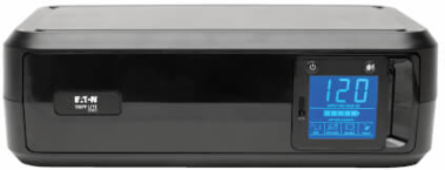

- Backlighted LCD screen indicates input voltage, 5-bar battery charge level, overload, AVR, on battery and replace battery status; LCD screen rotates for rack/tower viewing
- Alarm Cancel Operation
- Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
- LED Indicators
- Front panel LCD display
Switches2 Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness
Audible AlarmAudible alarm indicates power-failure and low-battery status; alarm can be disabled using PowerAlert software
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with input voltage as low as 89
Undervoltage CorrectionInput voltages between 89 and 104 are boosted by 14%
Input
- Rated input current (Maximum Load)
- 12A
- UPS Input Connection Type
- 5-15P; Right-Angled
- Recommended Electrical Service
- 15A 120V
Nominal Input Voltage(s) Supported120V AC
UPS Input Cord Length (ft.)6
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1000
- Output Watt Capacity (Watts)
- 500
- Frequency Compatibility
- 60 Hz
- UPS Output Receptacles (Surge Suppression Only)
- 4 UPS outlets, 4 surge-only outlets
- Output AC Waveform (AC Mode)
- Sine wave
- Nominal Output Voltage(s) Supported
- 110V; 115V; 120V
- Individually Controllable Load Banks
- No
Output kVA Capacity (kVA)1
Nominal Voltage Details115v nominal output in battery mode
Output Voltage Regulation (Battery Mode)+/- 5%
Hot-Swap PDU optionsPDUB15 (2U / 8 5-15R outlets)
Output AC Waveform (Battery Mode)PWM sine wave

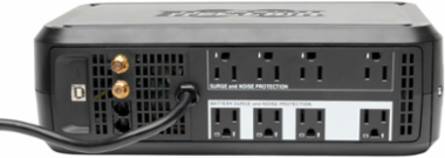

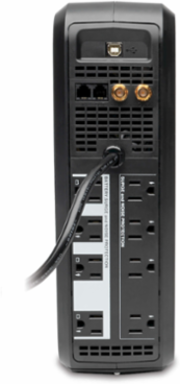

Output Receptacles(8) 5-15R
Communications
- PowerAlert Software
- For local monitoring via the UPS’s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
- Communications Interface
- USB (HID enabled)
Communications CableUSB cable included
Network UPS Tools CompatibilityNUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 510
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)61
AC Mode Efficiency Rating (100% Load)97%
Overview
- UPC Code
- 037332124999
UPS TypeLine-Interactive
Special Features
- Cold Start (Startup in Battery Mode During a Power Failure)
- Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS
Warranty
- Product Warranty Period (U.S. & Canada)
- 3-year limited warranty
Connected Equipment Insurance (U.S., Canada & Puerto Rico)$250,000 Ultimate Lifetime Insurance
Line / Battery Transfer
- Transfer Time
- 3 milliseconds
- High Voltage Transfer to Battery Power (Setpoint)
- 139
Low Voltage Transfer to Battery Power (Setpoint)89
