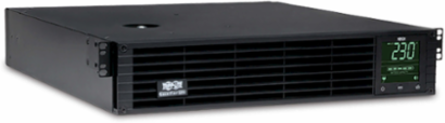

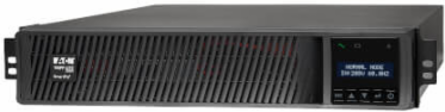

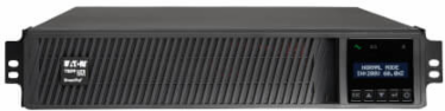

Tripp Lite SMX1500XLRT2U SmartPro 230V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
Tripp Lite SMX1500XLRT2U SmartPro 230V 1.5kVA 1.35kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
- MPN: SMX1500XLRT2U
- UPC: 037332119216
- PPN: TRP-SMX1500XLRT2U
Spec sheet
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2392.52/ EA
Description
Protects connected mission-critical equipment against damage, downtime and data loss due to blackouts, brownouts, surges and line noise. Ideal solution for point-of-sale applications, VoIP systems and small business networks.
Features
- Corrects under- and overvoltages from 158V to 278V
- 8 C13 outlets—4 switchable via network interface
- Network power management and control capability
- Expandable runtime with optional external battery packs
- 13.6 min. runtime at half load; 4.9 min. at full load
- To use the Auto Probe feature, this product requires a WEBCARDLX network interface (sold separately) running LX firmware update 15.5.2 or later
- 2-year limited warranty
Specifications
Surge / Noise Suppression
- UPS AC Suppression Joule Rating
- 350
- EMI / RFI AC Noise Suppression
- Yes
UPS AC Suppression Response TimeInstantaneous
Battery
- Full Load Runtime (min.)
- 4.9 min. (1350w)
- Expandable Battery Runtime
- Extended runtime supported via optional external battery packs
- DC System Voltage (VDC)
- 36
- Internal UPS Replacement Battery Cartridge
- RBC93-2U
- Battery Replacement Description
- Hot-swappable, user replaceable batteries
Half Load Runtime (min.)13.6 min. (675w)
External Battery Pack CompatibilityBP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27 -2US (multi-pack compatible)
Battery Recharge Rate (Included Batteries)Less than 4.5 hours from 10% to 90% (typical, full load discharge)
Battery AccessFront panel battery access door
Expandable RuntimeYes
Certifications
- UPS Certifications
- CE; Tested to GOST (Russia)
UPS Certification DetailsEN62040-1, 62040-2 (Class A)
Physical
- Cooling Method
- Fan
- Installation Form Factors Supported with Included Accessories
- 4 post 19 inch rackmount
- Minimum Required Rack Depth with External Battery Pack (cm)
- 51
- Minimum Required Rack Depth without External Battery Pack (cm)
- 40
- Optional Mounting Accessory Notes

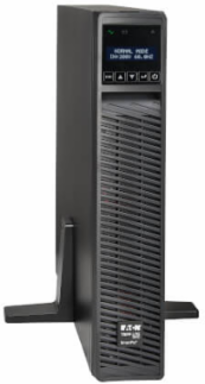

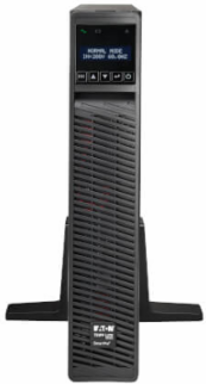

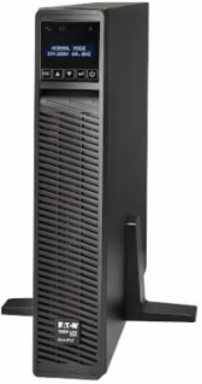

- Optional 2-9USTAND enables upright tower UPS placement; 2POSTRMKITWM enables wall-mount and 2-post rackmount installation; 4POSTRAILKITWM enables installation in 4-post short-depth racks from 14.5 to 23.5 inches (368 to 597mm); UPSHDEARKIT enables installation in 2 or 4-post racks using front vertical rails only, without rear support
- Primary UPS Depth (mm)
- 343
- Primary UPS Width (mm)
- 442
- Shipping Dimensions (hwd / in.)
- 8.80 x 19.90 x 23.30
- UPS Housing Material
- Steel
- UPS Power Module Weight (kg)
- 19.55

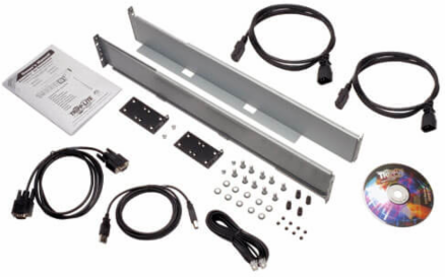

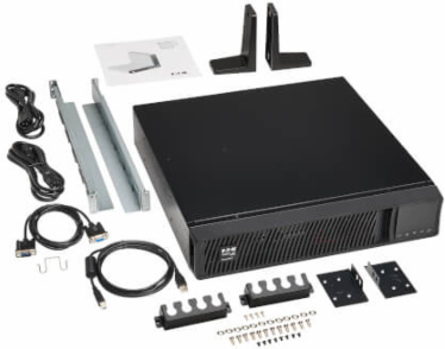

Included Mounting Accessory DescriptionIncluded 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Installation Form Factors Supported with Optional Accessories2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Minimum Required Rack Depth with External Battery Pack (in.)20
Minimum Required Rack Depth without External Battery Pack (in.)15.75
Primary Form FactorRackmount
Primary UPS Height (mm)89
Rack Height2U
Shipping Weight (lbs.)56.70
UPS Power Module Dimensions (hwd, in.)3.5 x 17.4 x 13.5
UPS Power Module Weight (lbs.)43.1
User Interface, Alerts & Controls

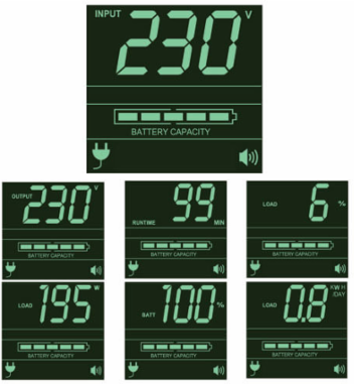

- Front Panel LCD Display
- Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
- Alarm Cancel Operation
- Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Switches3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Audible AlarmAudible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Voltage Regulation
- Voltage Regulation Description
- Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 158 to 278
- Undervoltage Correction
- Input voltages between 182 and 206 are boosted by 12%
Overvoltage CorrectionInput voltages between 244 and 278 are reduced by 12%
Severe Undervoltage CorrectionInput voltages between 158 and 182 are boosted by 24%
Input
- Rated input current (Maximum Load)
- 6.9A
- UPS Input Connection Type
- C14 inlet
- Input Circuit Breakers
- 10A
Nominal Input Voltage(s) Supported230V AC
UPS Input Connection DescriptionIEC320-C14 input connection accepts a variety of detachable cordsets to match country or site-specific wall receptacles
Input PhaseSingle-Phase
Output
- Output Volt Amp Capacity (VA)
- 1500
- Output Watt Capacity (Watts)
- 1350
- Power Factor
- 0.9
- Frequency Compatibility
- 50 / 60 Hz
- Output Voltage Regulation (Line Mode)
- +6% / -15%
- Included Output Power Cables
- Set of 2 C13 to C14 power cables included
- Output AC Waveform (AC Mode)
- Sine wave
- Output Capacity Details
- Output is reduced to 1200W maximum when used with external battery packs

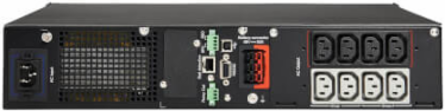

- Output Receptacles
- (8) C13
Output kVA Capacity (kVA)1.5
Output kW Capacity (kW)1.35
Nominal Voltage Details230V nominal output in battery mode
Frequency Compatibility DetailsAutomatic frequency selection
Output Voltage Regulation (Battery Mode)+/- 5%
Load Management ReceptaclesTwo switchable two-outlet C13 load banks
Output AC Waveform (Battery Mode)Pure Sine wave
Nominal Output Voltage(s) Supported220V; 230V; 240V
Individually Controllable Load BanksYes
Communications
- Network Management Cards
- SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD
- PowerAlert Software
- For local monitoring via the UPS’s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
- WatchDog Compatibility
- Supports Watchdog application, OS and hard-reboot restart options for remote applications
Network Monitoring Port DescriptionSupports detailed monitoring of UPS and site power conditions
Communications CableUSB and DB9 cabling included
Communications InterfaceUSB; DB9 Serial; EPO (emergency power off); Slot for SNMP/Web interface
Environmental
- Operating Temperature Range
- +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
- Relative Humidity
- 0 to 95%, non-condensing
- Battery Mode BTU / Hr. (Full Load)
- 689
- Audible Noise
- 45 dBA maximum, front side 1m
Storage Temperature Range+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
AC Mode BTU / Hr. (Full Load)139
AC Mode Efficiency Rating (100% Load)97%
Overview
- UPC Code
- 037332119216
UPS TypeLine-Interactive
Special Features
- Grounding Lug
- Back panel grounding lug
- High Availability UPS Features
- Hot swappable batteries
Cold Start (Startup in Battery Mode During a Power Failure)Cold-start operation supported
Green Energy-Saving FeaturesGreater than 95% efficiency - GREEN UPS; Individually controllable load banks
Warranty
- Product Warranty Period (Worldwide)
- 2-year limited warranty
Line / Battery Transfer
- Transfer Time
- 6 ms. (AC to DC) / 1 ms. (DC to AC)
- High Voltage Transfer to Battery Power (Setpoint)
- 278
Low Voltage Transfer to Battery Power (Setpoint)158
