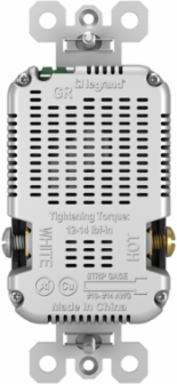

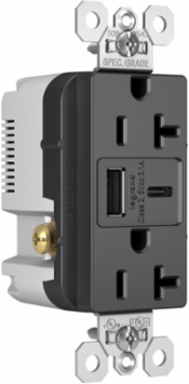

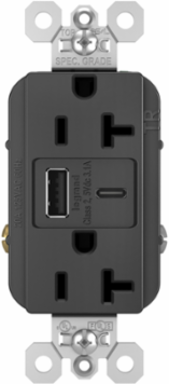

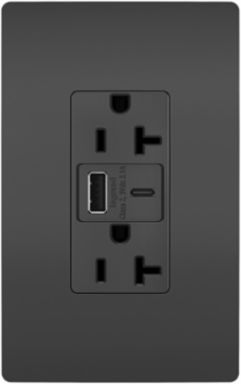

Pass & Seymour TR20USBACBK 20A 125V Tamper-Resistant Duplex Receptacle with USB A/C Ports, Black, 1.425 Inch Depth, 1.693 Inch Width, 2.677 Inch Height

MPN: TR20USBACBK
UPC: 785007181579
PPN: P-S-TR20USBACBK
UNSPSC: 39121406

$77.64

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

20A 125V Tamper-Resistant Duplex Receptacle with USB A/C Ports, Black, 1.425 Inch Depth, 1.693 Inch Width, 2.677 Inch Height

Features

Two drive screws anchor strap to back body and face where abrupt removal torque is greatest.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Height	2.677 in
Color	Black
Product Line	Pass & Seymour
Number of Poles	Double Pole
Number of Receptacles	2.0
USB Amperage	3.1 A
Outlet Type	Tamper-Resistant; USB-Charging
Number of Wires	3.0
Wire Size	14 - 10 AWG
Frequency Rating	60 Hz
Application Sector	Commercial; Multi-Dwelling Unit; Residential
Is Tamper-Resistant	Yes
USB Wattage	15.0 W
Operating Temperature Max	60.0 °C
Wire Connection Type	Screw Terminals

Depth	1.425 in
Width	1.693 in
Finish	Matte
Amperage	20.0 A
Indoor/Outdoor	Indoor
Number of USBs	2.0
Features	USB-C Charging; USB-A Charging
Standard	FEDSPEC
Connection Location	Side Only
Mounting Type	Box
NEMA Configuration Code	5-20R
Wall Plate Included	No
Voltage	125.0 V
Warranty Type	1-Year Limited Warranty
Operating Temperature	-40°-60°C
Operating Temperature Min	-40.0 °C
