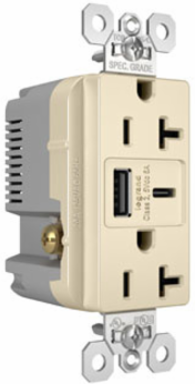

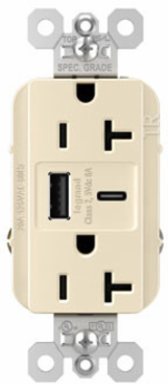

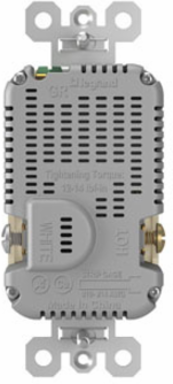

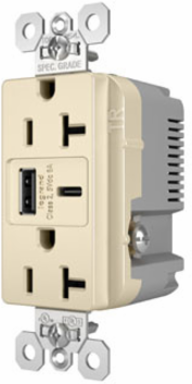

Pass & Seymour TR20USBAC6LA 20A Tamper-Resistant Duplex Receptacle with USB A/C Ports, 1.693 Inch Width
- MPN: TR20USBAC6LA
- UPC: 785007210002
- PPN: P-S-TR20USBAC6LA
- UNSPSC: 39121406
CAD
$83.61
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A Tamper-Resistant Duplex Receptacle with USB A/C Ports, 1.693 Inch Width
Features
- High Impact resistant nylon face.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 2.677 in |
| Color | Light Almond |
| Amperage | 20.0 A |
| Number of Poles | Double Pole |
| Number of Receptacles | 2.0 |
| USB Amperage | 6.0 A |
| Features | USB-C Charging; USB-A Charging |
| Mounting Type | Box |
| Voltage | 125.0 V |
| Wall Plate Included | No |
| Operating Temperature | -40°-60°C |
| Application Sector | Multi-Dwelling Unit; Commercial; Residential |
| Operating Temperature Max | 60.0 °C |
| Operating Temperature Min | -40.0 °C |
| Depth | 1.425 in |
|---|---|
| Width | 1.693 in |
| Product Line | Pass & Seymour |
| Warranty Type | 1-Year Limited Warranty |
| Indoor/Outdoor | Indoor |
| Number of USBs | 2.0 |
| Outlet Type | Tamper-Resistant; USB-Charging |
| Frequency Rating | 60 Hz |
| NEMA Configuration Code | 5-20R |
| Connection Location | Side Only |
| USB Wattage | 30.0 W |
| Is Tamper-Resistant | Yes |
| Wire Connection Type | Screw Terminals |
| Number of Wires | 3.0 |
| Wire Size | 14 - 10 AWG |
