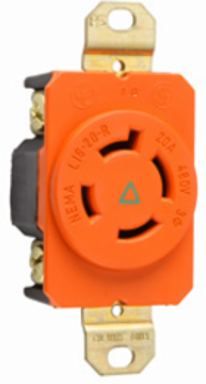

Pass & Seymour IGL1620R 20A NEMA L1620 Isolated Ground Receptacle, Orange, 4-Wire 480V
- MPN: IGL1620R
- UPC: 785007162103
- PPN: P-S-IGL1620R
CAD
$118.36
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A NEMA L1620 Isolated Ground Receptacle, Orange, 4-Wire 480V
Features
- UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
- 140 joules of energy absorption in each of thethree modes.
- 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
- 1 filtering capacitor for 7 to 1 average noise reduction.
- Nominal let-through (suppressed) voltage in all 3 modes, 500V.
- LED indicator light. Response time less than 1 nanosecond for unmounted MOV.
- Overcurrent protection in all 3 modes.
- Electronic components potted for electrical, mechanical and thermal stability.
- Thermal protection in all 3 modes.
- Leakage current: 0.5 mA at 25: C/120VAC.
- 3 18mm super MOVs to suppress transients in all modes : equally.
- Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance) Varistor voltage: 150V RMS. Back and side wire capability including ground terminal.
- Operating temperature: -40: C to 85: C(-40: F to 185: F)
- Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.19 in
- Height
- 2.29 in
- Product Line
- Pass & Seymour
- Country of Origin
- Mexico
- Voltage
- 480.0 V
- Number of Wires
- 4.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Receptacles
- 1.0
- Connection Location
- Back and Side
- Warranty Type
- 1-Year Limited Warranty
ColorOrange
Width1.61 in
PhaseThree
Amperage20.0 A
StandardUL Listed
Outlet TypeLocking
Number of Poles3-Way
FeaturesIndicator Lights
Application SectorIndustrial
Wire Connection TypeScrew Terminals
Special FeaturesAuto ground clip, three drive screws, plated steel wrap
