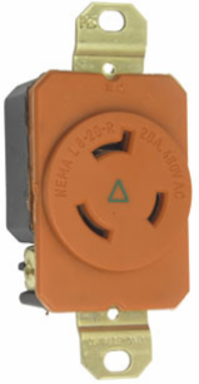

Pass & Seymour IGL820R 20A NEMA L820 Isolated Ground Receptacle, Orange, 1.19 Inch Depth, 1.61 Inch Width, 2.29 Inch Height
- MPN: IGL820R
- UPC: 785007282108
- PPN: P-S-IGL820R
CAD
$110.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A NEMA L820 Isolated Ground Receptacle, Orange, 1.19 Inch Depth, 1.61 Inch Width, 2.29 Inch Height
Features
- UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
- 140 joules of energy absorption in each of the three modes.
- 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
- 1 filtering capacitor for 7 to 1 average noise reduction.
- Nominal let-through (suppressed) voltage in all 3 modes, 500V.
- LED indicator light.
- Response time less than 1 nanosecond for unmounted MOV.
- Overcurrent protection in all 3 modes.
- Electronic components potted for electrical, mechanical and thermal stability.
- Thermal protection in all 3 modes.
- Leakage current: 0.5 mA at 25: C/120VAC.
- 3 18mm super MOVs to suppress transients in all modes : equally.
- Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
- Varistor voltage: 150V RMS.
- Back and side wire capability including ground terminal.
- Operating temperature: -40: C to 85: C(-40: F to 185: F)
- Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Documentation & Downloads
Specifications
Key Specifications
- Depth
- 1.19 in
- Height
- 2.29 in
- Width
- 1.61 in
- Phase
- Three
- Voltage
- 480.0 V
- Number of Wires
- 3.0
- Indoor/Outdoor
- Indoor
- Wall Plate Included
- No
- Number of Poles
- Double Pole
- Application Sector
- Industrial
- NEMA Configuration Code
- L8-20R
- Wire Connection Type
- Screw Terminals
- Special Features
- Auto ground clip, three drive screws, plated steel wrap
ColorOrange
Product LinePass & Seymour
Country of OriginMexico
Amperage20.0 A
StandardUL Listed
Outlet TypeLocking
Wire Size14 - 10 AWG
Number of Receptacles1.0
Outlet TypeIsolated Ground
FeaturesBrass Mounting Strap
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
