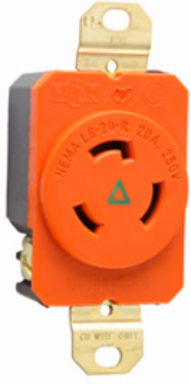

Pass & Seymour IGL620R 20A NEMA L620 Single Receptacle, Orange, Isolated Ground, 1.19 Inch Depth, 1.61 Inch Width, 2.29 Inch Height
- MPN: IGL620R
- UPC: 785007262001
- PPN: P-S-IGL620R
- UNSPSC: 39121406
CAD
$95.72
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A NEMA L620 Single Receptacle, Orange, Isolated Ground, 1.19 Inch Depth, 1.61 Inch Width, 2.29 Inch Height
Features
- UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
- 140 joules of energy absorption in each of the three modes.
- 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
- 1 filtering capacitor for 7 to 1 average noise reduction.
- Nominal let-through (suppressed) voltage inall 3 modes, 500V.
- LED indicator light.
- Response time less than 1 nanosecond for unmounted MOV.
- Overcurrent protection in all 3 modes.
- Electronic components potted for electrical, mechanical and thermal stability.
- Thermal protection in all 3 modes.
- Leakage current: 0.5 mA at 25: C/120VAC.
- 3 18mm super MOVs to suppress transients in all modes : equally.
- Common mode noise attenuation:500 KHz to 30 MHz: up to 35 dB(50 ohm source impedance)
- Varistor voltage: 150V RMS.
- Back and side wire capability including ground terminal.
- Operating temperature: -40: C to 85: C(-40: F to 185: F)
- Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Height | 2.29 in |
| Color | Orange |
| Amperage | 20.0 A |
| Number of Poles | 3-Way |
| Special Features | Isolated ground, locking device, impact/corrosion resistant\ |
| Standard | UL 498; FEDSPEC |
| Operating Temperature Min | -40.0 °C |
| Wire Connection Type | Internal Pressure Plates; Screw Terminals |
| Warranty Type | 1-Year Limited Warranty |
| Voltage | 250.0 V |
| Outlet Type | Locking |
| Wall Plate Included | No |
| Connection Location | Back and Side |
| Depth | 1.19 in |
|---|---|
| Width | 1.61 in |
| Product Line | Pass & Seymour |
| Application Sector | Commercial |
| Phase | Three |
| Number of Wires | 4.0 |
| Wire Size | 18 - 10 AWG |
| Operating Temperature | -40°-75°C |
| Operating Temperature Max | 75.0 °C |
| Indoor/Outdoor | Indoor |
| Number of Receptacles | 1.0 |
| NEMA Configuration Code | L6-20R |
| Features | Brass Mounting Strap; Indicator Lights |
