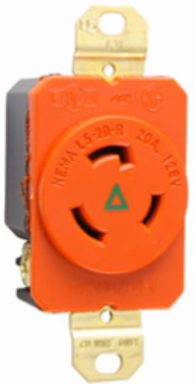

Pass & Seymour IGL520R 20A 125V Isolated Ground NEMA L520 Receptacle, Orange, 1.61 Inch Width
Pass & Seymour IGL520R 20A 125V Isolated Ground NEMA L520 Receptacle, Orange, 1.61 Inch Width
- MPN: IGL520R
- UPC: 785007252354
- PPN: P-S-IGL520R
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$66.38/ EA
Description
Turnlok® Receptacle Single 3-Wire 20A 125V Isolated Ground
Features
- UL1449 (latest revision). (1.2 x 50: s 6000V,8 x 20: s 3000A).
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- 9,000 amps current handling capability in each of three modes: line to neutral, line to ground, neutral to ground.
- 1 filtering capacitor for 7 to 1 average noise reduction.
- Nominal let-through (suppressed) voltage in all 3 modes, 500V.
- LED indicator light.
- Overcurrent protection in all 3 modes.
- Electronic components potted for electrical, mechanical and thermal stability.
- Thermal protection in all 3 modes.
- Back and side wire capability including ground terminal.
- Operating temperature: -40: C to 85: C(-40: F to 185: F)
- Conforms to the latest revision ANSI/IEEE C62.41 (formerly IEEE 587), ANSI/IEEE C62.45.
Specifications
Specifications
- Depth
- 1.19 in
- Height
- 2.29 in
- Width
- 1.61 in
- Country of Origin
- Mexico
- Standard
- UL 498
- Standard
- FEDSPEC
- Wire Size
- 14 - 10 AWG
- Number of Receptacles
- 1.0
- Outlet Type
- Isolated Ground
- Application Sector
- Industrial
- NEMA Configuration Code
- L5-20R
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 75.0 °C
- Operating Temperature
- -40°-75°C
ColorOrange
FinishMatte
Product LinePass & Seymour
Amperage20.0 A
Voltage125.0 V
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of PolesDouble Pole
Application SectorCommercial
FeaturesBrass Mounting Strap
Connection LocationBack and Side
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Wire Connection TypeInternal Pressure Plates
