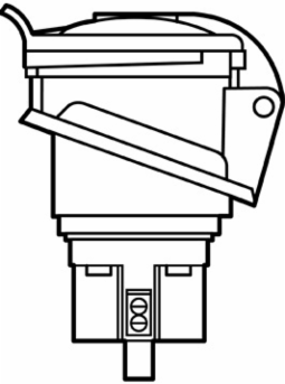

Pass & Seymour PS520R5S Splashproof Pin & Sleeve Receptacle 20A 3øY 347V/600V, 3.66 Inch Height
- MPN: PS520R5S
- UPC: 785007520163
- PPN: P-S-PS520R5S
CAD
$309.87
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
4-Pole, 5-Wire, Pin and Sleeve Receptacle. 20A, 3Y, 247/600V.
Features
- Legrand Pin & Sleeve products provide installation ease, enduring performance in harsh conditions, and guaranteed IEC 309 compatibility.
- Arrives ready to wire, with cord grip open and cable-ready. Terminal screws come backed out and ready to wire. Front and back body require no disassembly prior to assembly.
- Nylon construction for highimpact and corrosion resistance.
- Nickel-plated brass pins provide extracorrosion resistance without sacrificing electrical conductivity.
- Locking ring with an integral neoprene gasket provides watertight seal when plug and connector/receptacle are mated.
- Natural-rubber grommets provide watertight protection at cable entry.
- Combination-head screws for added convenience and quick installation.
- Revolutionary, hinged cord grip for durable performance and ease of installation.
- Cover with integral neoprene gasket provides watertight seal.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.66 in
- Color
- Gray
- Width
- 2.9 in
- Amperage
- 20.0 A
- Standard
- UL Listed
- Number of Poles
- 4-Way
- Special Features
- Impact, chemical resistant, non conductive retaining screw, brass male/female contacts
Length3.46 in
Product LinePass & Seymour
Country of OriginUnited States
Voltage247.0 V
Number of Wires5.0
Application SectorIndustrial
