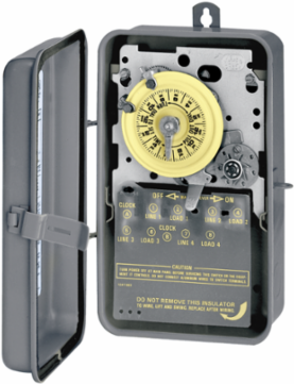

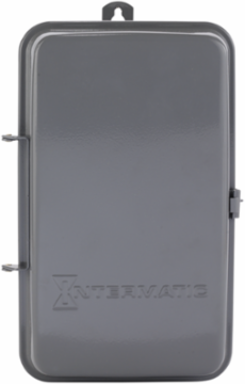

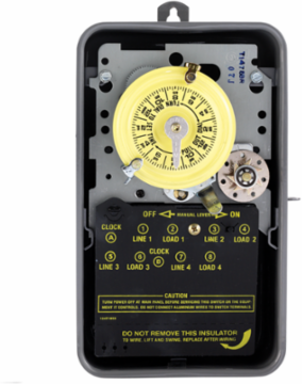

Intermatic T1475BR 24-Hour Mechanical Time Switch 480 VAC 60Hz Outdoor Enclosure
- MPN: T1475BR
- UPC: 078275179097
- PPN: INT-T1475BR
- UNSPSC: 39122208
CAD
$566.15
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
Features
- Controls loads up to 40 A per pole
- Direct 24-hour control of most loads
- Up to 10 ON/OFF operations each day
- Minimum ON/OFF times of one hour
- Manual override
- One ON and one OFF tripper and three day-skipper screws included
Documentation & Downloads
Specifications
Key Specifications
- Input Voltage Rating Range(s)
- 480 VAC, 60 Hz
- Color
- Gray
- Marketing Description
- Similar to the T100 Series, these time switches can also handle electrical loads up to 40 A per pole. The T170 Series Time Switches allow for up to 10 ON/OFF settings per day, but give you the additional capability of skipping days in which the loads may not be needed. Each time switch will come with one set of ON/OFF trippers as well as three skipper screws to omit the schedule for at least three days.
- Width
- 6.5 in
- Country of Origin
- Mexico
Warranty Period1-Year limited
ApplicationsIndoor Lighting Control;Outdoor Lighting Control;Timing/Scheduling ON/OFF
Height10.125 in
Depth3.625 in
