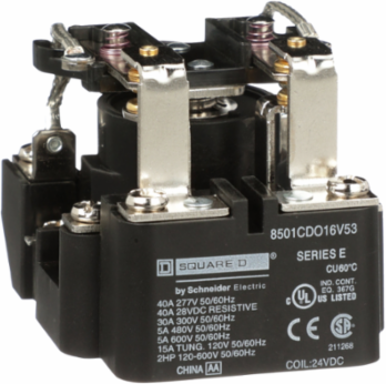

Square D 8501CDO16V53 Power Relay Type C, 2 hp, 30A Resistive, DPDT, 24VDC Coil
- MPN: 8501CDO16V53
- UPC: 785901052197
- PPN: SCH-8501CDO16V53
CAD
$108.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8501C power relays are used to control small single phase motors and other light loads. These power relays are available with a variety of contact configurations. This relay has a DPDT contact configuration with two normally open and two normally closed contact. A variety of coil voltages are available. This relay has a 24 VDC nonreplaceable coil. Designed with heavy duty contacts that are rated for single phase 1.5 HP motors at 120 VAC, 230 VAC or 600 VAC. It also has a 30 A resistive rating at 300 VAC or 5 A resistive rating at 600 VAC. These relays have a durable open frame construction. 8501C power relays are UL listed and CSA certified. This range of relays is used in electric heater, pumping, conveyor and material handling applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, United States

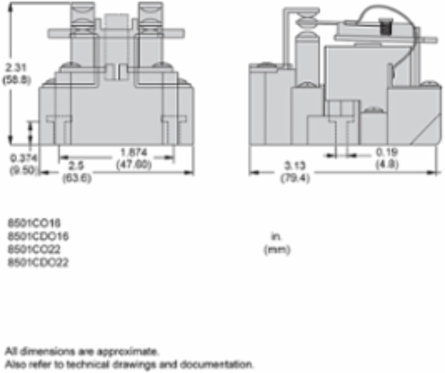

Depth2.31 in
Complementary Attributes
- Line Rated Current
- 30 A
- Rated Power In Hp
- 2.0 hp
Maximum Switching Voltage600 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Certificate Agency
- UL listed file E78351 CCN NLDX, CSA, CE
- Local Publishable Date
- 2026-02-10
- Future Imap
- 73.78
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Awg Gauge
- AWG 10 copper

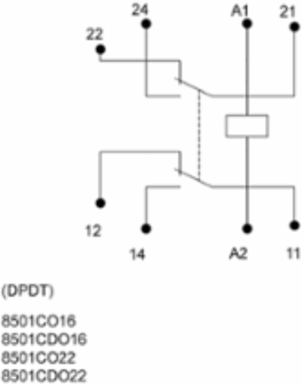

- Contacts Type And Composition
- 2 NO/2 NC
- Device Short Name
- type C
- Phase
- 1 phase
- Product Or Component Type
- power relay
- Returnability
- Yes
- Switch Function
- DPDT
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Width Nominal
- 2.5 in
- Connections - Terminals
- screw clamp terminal
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorY
Future Msrp82.34
Stock Policy1
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Catalog Class8501
Device Applicationsuited for controlling small single phase motors and other light loads
Mounting Supportpanel mounting
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductPower Relay 8501C
Sustainable PackagingNo
Tightening Torque11-15 lbf.in
Height Nominal3.12 in
[Uc] Control Circuit Voltage24 V DC
Hold-in Power Consumption In W2-2 W
Package Weight(Lbs)276.691 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -22-140 °F, -22-140 °F
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Phase
- 1 phase
- Range Of Product
- Power Relay 8501C
Product Or Component Typepower relay
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
