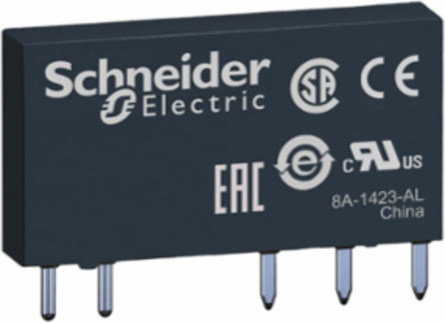

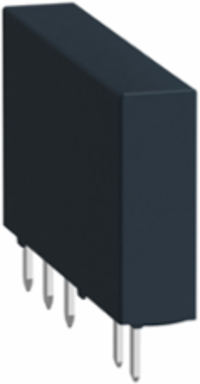

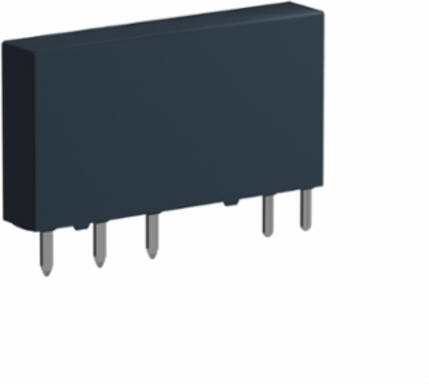

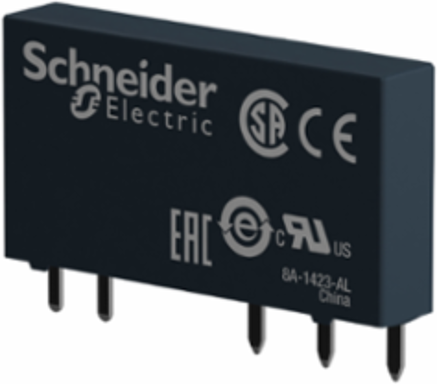

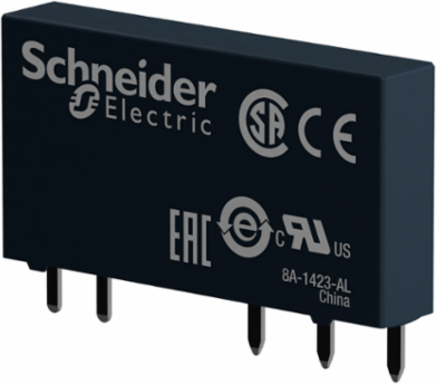

Schneider Electric RSL1GB4BD Slim Interface Relay, 6A, 24V DC, SPDT, 5 mm Width
- MPN: RSL1GB4BD
- PPN: SCH-RSL1GB4BD
CAD
$11.92
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RSL slim interfacing plug-in relay has a coil control voltage of 24V DC and has 1 changeover contact SPDT (single pole double throw) with a rating of 6A." "It has large choice of number of contacts for high rated current use." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "One of the slimiest interface relay on the market, with 6mm width, it can be installed nearly anywhere." "Easy installation and withdrawal the relay from its socket." "It is compatible with high breaking capacity or low-level current application requirements." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "[delete]" "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0
Features
- Measuring an ultra-slim 5mm in total width, this TeSys/Harmony RSL series slim interface relay is engineered to maximize panel density. It allows control panel builders to pack dozens of isolation channels into tight enclosures, freeing up valuable DIN rail space for other automation components and avoiding the need to specify a larger, more expensive cabinet footprint.
- Equipped with a 1 C/O (Changeover) Single-Pole Double-Throw (SPDT) contact configuration, this relay handles continuous thermal currents up to 6A at 250V AC or 30V DC. The premium Silver Alloy contacts deliver an exceptional electrical service life of up to 60,000 cycles under full resistive load, making it highly dependable for switching pilot lights, small solenoids, and auxiliary contactor coils.
- Designed with a high-efficiency 24V DC control coil, this module consumes only 0.17W during steady-state operation. This extremely low power draw (approximately 7 mA) means it can be safely energized directly by standard programmable logic controller (PLC) transistor outputs without the risk of overloading delicate solid-state electronics or generating excess heat inside the enclosure.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, China, France |
|---|
| Depth | 18.5 mm |
|---|
Complementary Attributes
| Maximum Switching Capacity | 1500 VA, 50 W |
|---|---|
| Line Rated Current | 6 A |
| Minimum Switching Capacity | 24 mW |
| Minimum Switching Voltage | 24 V |
| Control Circuit Type | DC |
|---|---|
| Maximum Switching Voltage | 277 V |
| Minimum Switching Current | 1 mA |
| Rated Operational Voltage Limits | 18...33.6 V DC |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Contact Operation | low level, low level |
| Operating Time | 5 ms reset, 12 ms |
| Vibration Resistance | +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6+/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6, +/- 1 mm (f= 10-55 Hz) conforming to IEC 60068-2-6 |
| Control Circuit Type2 | DC |
| [Uc] Control Circuit Voltage | DC, 24 V |
| Carbon Footprint Of The Distribution Phase [A4] | 0.000774129, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0 kg CO2 eq., 0.0000362786 |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 2 kg CO2 eq., 1.79302592 |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Average Coil Consumption | 0.17 W |
| Compatibility Code | RSL |
| Contacts Type And Composition | 1 C/O |
| Dielectric Strength | 1000 V AC between contacts4000 V AC between coil and contact |
| Load Current | 6 A 250 V AC 0.5 mm mounting distance |
| Mounting Support | socket or PCB |
| Product Availability | Stock - Normally stocked in distribution facility |
| Protection Category | RT III |
| Relay Type | slim interface relay |
| Safety Reliability Data | B10d = 60000 |
| Shape Of Pin | flat (PCB type) |
| Status Led | without |
| Test Levels | level A group mounting |
| Pep Code | ENVPEP2502015EN |
| Pep Verification Date | 2018-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Height Nominal | 28 mm |
| [Ie] Rated Operational Current | 6 A AC-1/DC-1)IEC/UL |
| [Ui] Rated Insulation Voltage | 250 V IEC277 V cUL |
| Drop-out Voltage Threshold | >= 0.05 Uc>= 0.05 Uc |
| Package Weight(Lbs) | 5.000 g |
| Warranty (In Months) | 18 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Operating Rate | <= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load<= 360 cycles/hour under load, <= 360 cycles/hour under load, <= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load |
| Shock Resistance | 5 gn 11 ms) not operating IEC 60068-2-27, 5 gn 11 ms) in operation IEC 60068-2-27 |
| Control Circuit Voltage | 24 V |
| Certificate Agency | EAC, CSA, UL |
| Terminals Description Iso N°1 | (A1-A2)CO, (11-12-14)OC, (A1-A2)CO, (11-12-14)OC |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.001531206, 0 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.1872732939 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2353 |
| China Rohs In Scope | Yes |
| Phenolic Free Solution | Yes |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Average Resistance | 3390 Ohm at 23 °C +/- 15 % |
| Contacts Material | silver alloy - gold plated (AgSnO2) |
| Control Type | without lockable test button |
| Electrical Durability | 60000 cycles, 6 A at 250 V, AC-1 C/O |
| Mechanical Durability | 10000000 cycles |
| Operating Position | any position |
| Product Or Component Type | plug-in relay |
| Range Of Product | Harmony Electromechanical Relays |
| Returnability | Yes |
| Series Name | RSL series |
| Software Version | EIME v5.7.0.4 |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 2 kg CO2 eq. |
| Database Version | 2018-09 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards. |
| Functional-unit Unit | unité (unit) |
| Energy Model - Manufacturing [A1-a3] | Energy model used: China |
| Energy Model - Use [B6] | Electricity mix; AC; <lt/> 1kV; EU-27 |
| Recyclability Potential In % | 70 |
| Width Nominal | 5 mm |
| [Ithe] Conventional Enclosed Thermal Current | 6 A -40-55 °C |
| [Uimp] Rated Impulse Withstand Voltage | 6 kV IEC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536410020 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-70 °C, -40-70 °C |
|---|---|
| Reach Free Shvc | Yes |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Carbon Footprint | 1.9826408274 |
| Environmental Disclosure | ENVPEP2502015EN |
| Ip Degree Of Protection | IP40 conforming to IEC 60529 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2018-09-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Toxic Free | Yes |
| Ambient Air Temperature For Operation | -40-55 °C-40-55 °C |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2502015EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | plug-in relay |
|---|
| Range Of Product | Harmony Electromechanical Relays |
|---|
ETIM
| ETIM 8 | EC001437 |
|---|
| ETIM 9 | EC001437 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
