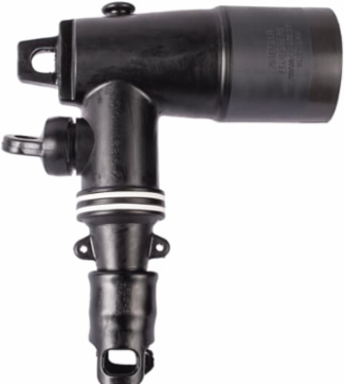

Thomas & Betts 262LRJS-D 25 LB ELB W/JS TP HOUSING .89-1.22
- MPN: 262LRJS-D
- UPC: 751141933060
- PPN: T-B-262LRJS-D
CAD
$255.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Jacket Seal Elbow Connector with Test Point (Housing Only), .890 inch - 1.220 Inch Cable Insulation Diameter
Specifications
Additional Information
- Application
- 200 kV, 200 Amp
- Color
- Black
- Includes
- 1 Elbow Connector Housing
- Material
- Housing - EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 11.47 inch length x 8.20 inch width, 2.87 inch Diameter
- Standards
- ANSI/IEEE Standard 386
- UPC
- 075114193306
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Number of Batteries0
Product TypeLoadbreak Elbow Connector with Test Point and Jacket Seal
Special Functions25kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Built in cable jacket seal. Non-corrosive capacitive test point.
Temperature Range-40 to +65 °C
Voltage Rating28 kV
Dimensions
- Product Net Weight
- 2.31 lb1.048 kg
Container Information
- Package Level 1 Units
- 1 piece
- Package Level 2 Width
- 13 in330 mm
- Package Level 2 Depth / Length
- 19.3 in490 mm
Package Level 2 Units15 piece
Package Level 2 Height11 in279 mm
Classifications
- UNSPSC
- 39121421
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
WEEE CategoryProduct Not in WEEE Scope
Ordering
- EAN
- 0075114193306
Customs Tariff Number8535908020
