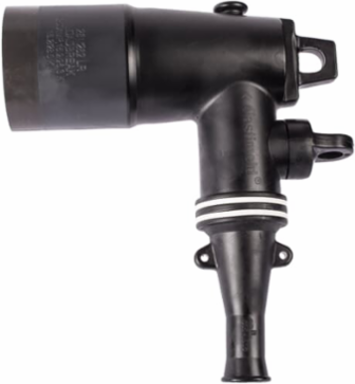

Thomas & Betts 262LR-C 25 LB ELB W/TP HOUSING .805-1.060
- MPN: 262LR-C
- UPC: 075114191944
- PPN: T-B-262LR-C
CAD
$226.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
25kV 200 Amp, Loadbreak Elbow Connector with Test Point (Housing Only), .805 inch - 1.060 Inch Cable Insulation Diameter. No Sealing Kit.
Specifications
Additional Information
- Application
- 200 kV, 200 Amp
- Color
- Black
- Includes
- 1 Elbow Connector Housing
- Material
- Housing - EPDM Rubber
- Product Name
- ELECTRICAL CONNECTOR,>1000V
- Size
- 9.03 inch (299.4 mm) X 8.20 inch (208.3 mm) not including probe, 2.86 inch (72.6 mm) Diameter
- Standards
- ANSI/IEEE Standard 386
- UPC
- 075114191944
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Number of Batteries0
Product TypeLoadbreak Elbow Connector with Test Point
Special Functions28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Non-corrosive capacitive test point.
Temperature Range-40 to +65 °C
Voltage Rating28 kV
Dimensions
- Product Net Weight
- 2.18 lb988.662 g
Container Information
- Package Level 1 Units
- 1 piece
- Package Level 2 Width
- 12.6 in320 mm
- Package Level 2 Depth / Length
- 19.2 in488 mm
Package Level 2 Units15 piece
Package Level 2 Height10.7 in272 mm
Classifications
- UNSPSC
- 39121421
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
WEEE CategoryProduct Not in WEEE Scope
Ordering
- EAN
- 0075114191944
Customs Tariff Number8535908020
