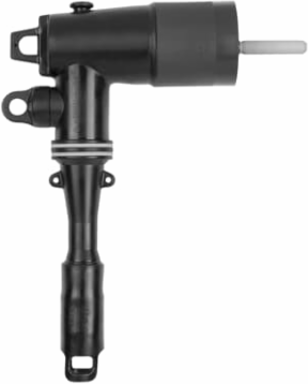

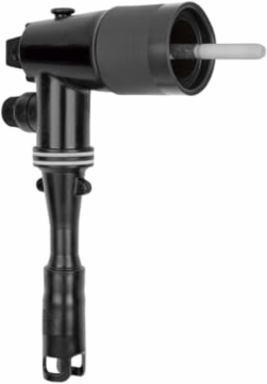

Thomas & Betts 262LRJS-E5250 25KV 200A ELBOW WITH JACKET SEAL
- MPN: 262LRJS-E5250
- UPC: 075114411172
- PPN: T-B-262LRJS-E5250
- UNSPSC: 39121421
CAD
$272.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
25kV, 200 Amps, Loadbreak Elbow, Built in Jacket Seal, Cable Insulation Diameter 1.090-1.310 inches, (27.69-33.27 mm), Bi-Metal Conductor, Conductor Size 2/0 Stranded/Compressed, 3/0 Solid/Compact. With Test Point. Kit Contains Elbow Connector Housing, Compression Lug, Probe, Probe Wrench, Lubricant, Installation Instruction Sheet and Crimp Chart.
Features
- Fully Shielded, Fully Submersible Molded Rubber Housing. 100 percent Peroxide-Cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation, Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in Cable Jacket Seal
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- Width 8.2 inch , Length Bottom Edge to Bushing Center 11.47 in
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- EPDM Rubber
- Environmental Conditions
- Fully Submersible
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
ApplicationDesigned for connecting to and operating 28kV class, 200 Amp Distribution Apparatus
StandardANSI/IEEE Standard 386
Conductor Range2/0 STR/COMPR AWG , 3/0 SOL/COMPT AWG
Voltage Rating25 kV
Amperage Rating200 A
Temperature Rating-40 to +65 C
