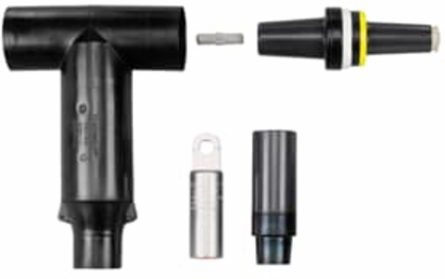

Thomas & Betts K655ETP-J0270-S 25KV 600A ELBOW WINDOW-OP W/SEALING
- MPN: K655ETP-J0270-S
- UPC: 075114416108
- PPN: T-B-K655ETP-J0270-S
- UNSPSC: 39121421
CAD
$1161.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
600 Amp, 25KV, DeadBreak, Elbow Connector, Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 4/0 /Solid 250 /mmSquared 126.67. Cold-Shrinkable Jacket Seal Included.
Features
- Cold-Shrinkable Jacket Seal
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | Elastimold |
| Connection | Compression |
| Size | Cable Insulation Diameter 0.980 inch to 1.180 inch |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | EPDM Rubber |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 25 kV |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 4/0 STR AWG , 250 kcmil |
| Voltage Rating | 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
