Thomas & Betts K656CETP-P0410-DRG 25KV 600A WINDOW-OP_ W-INS CAP
- MPN: K656CETP-P0410-DRG
- UPC: 075114406840
- PPN: T-B-K656CETP-P0410-DRG
- UNSPSC: 39121421
CAD
$2842.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

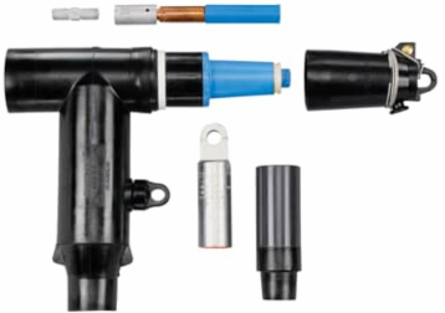

25kV, 600 Amp, Combo T Elbow Reducing Tap Plug with Test Point, includes Stud, Cable Adapter, Lug and Insulated Cap Kit, Cable Insulation Diameter 1.725-1.935 inches, Universal Aluminum Connector Type, Connector Size 1000 kcmil Stranded/Compressed. With Insulating Cap.
Features
- Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Brand Name | ELASTIMOLD |
| Connection | Compression |
| Size | 13.31 inches width, 10.88 inch bottom edge to center of bushing |
| Material | Housing - EPDM Rubber |
| Color | Black |
| Insulation | Yes, EPDM Rubber |
| Environmental Conditions | All Weather Conditions |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
|---|---|
| IGCC | 4586 |
| Application | 600 Amps, 25kV Connector |
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 1000 STR/COMPR kcmil |
| Voltage Rating | 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
