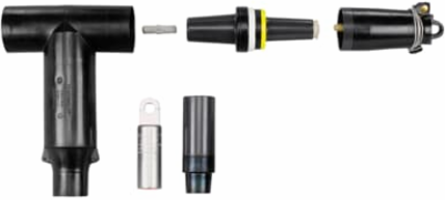

Thomas & Betts K655ETP-F0220-DRGSG3 25KV 600A WINDOW-OP KIT W-SEALING
- MPN: K655ETP-F0220-DRGSG3
- UPC: 075114420181
- PPN: T-B-K655ETP-F0220-DRGSG3
- UNSPSC: 39121421
CAD
$1466.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.805 inch to 1.060 inch. Aluminum Compression Lug. Conductor Size AWG, Compressed / Stranded 3/0, or Compacted / Solid 4/0. With Insulated Cap and Cold-Shrinkable Seal with Copper Braid and Constant Force Spring.
Features
- Includes Seal and Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | ELASTIMOLD |
|---|---|
| Connection | Compression |
| Size | Elbow 12.5 inch long |
| Material | Housing EPDM Rubber |
| Color | Black |
| Insulation | EPDM Rubber |
| Country of Origin | United States |
| Buy American Act (BAA) Compliant | Contact Manufacturer |
| Application | 600 Amps, 25kV |
|---|---|
| Standard | ANSI/IEEE Standard 386 |
| Conductor Range | 3/0 COMPR/STR AWG , 4/0 COMPT/SOL AWG |
| Voltage Rating | 25 kV |
| Amperage Rating | 600 A |
| Temperature Rating | -40 to +65 C |
| American Recovery and Reinvestment Act (ARRA) Compliant | Contact Manufacturer |
| IGCC | 4586 |
