Thomas & Betts K656CETP-H0240-DRG 25KV 600A WINDOW-OP_ W-INS CAP
- MPN: K656CETP-H0240-DRG
- UPC: 075114406833
- PPN: T-B-K656CETP-H0240-DRG
- UNSPSC: 39121421
CAD
$2830.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

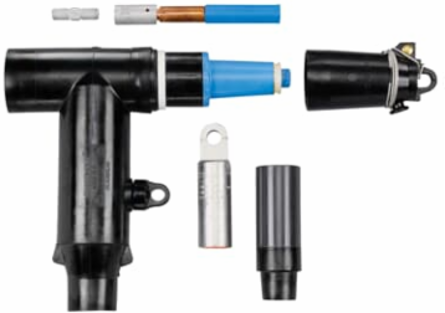

25kV, 600 Amp, Combo T Elbow Reducing Tap Plug with Test Point, includes Stud, Cable Adapter, Lug and Insulated Cap Kit, Cable Insulation Diameter .850-1.050 inches (21.6-26.7 mm), Universal Aluminum Connector Type, Connector Size 1/0 Stranded/Compressed or 2/0 Solid/Compact. With Insulating Cap.
Features
- Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Buy American Act (BAA) Compliant
- Contact Manufacturer
- Brand Name
- ELASTIMOLD
- Connection
- Compression
- Size
- 13.31 inches width, 10.88 inch bottom edge to center of bushing
- Material
- Housing - EPDM Rubber
- Color
- Black
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
American Recovery and Reinvestment Act (ARRA) CompliantContact Manufacturer
IGCC4586
Application600 Amps, 25kV Connector
StandardANSI/IEEE Standard 386
Conductor Range1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG
Voltage Rating25 kV
Amperage Rating600 A
Temperature Rating-40 to +65 C
