Thomas & Betts K655ETP-J0290-DRG-S 25KV 600A WINDOW-OP WITH SEALING
- MPN: K655ETP-J0290-DRG-S
- UPC: 075114401883
- PPN: T-B-K655ETP-J0290-DRG-S
- UNSPSC: 39121421
CAD
$1372.47
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

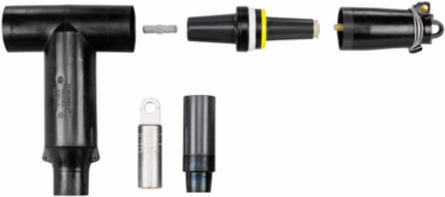

25kV, 600 Amp Deadbreak, Test and Ground Connector Kit. Cable Insulation Diameter 0.980 inch to 1.180 inch. Aluminum Compression Lug. Conductor Size Compressed Stranded 300 kcmil or Compacted Solid 350 kcmil. With Insulated Cap. Cold-Shrinkable Jacket Seal Included. No Test Point. Consists of Elbow Housing, Tap Plug, Insulated Cap, Cable Size Adapter, Compression Lug, Stud, Lubricant, Crimp Chart and Instructions
Specifications
Ordering
- Country of Origin
- United States (US)
Selling Unit of Measureeach
Classifications
- IDEA Granular Category Code (IGCC)
- 4586 >> Electrical connector assembly
Additional Information
- Application
- 600 Amps, 25kV
- Color
- Black
- Current Rating
- 600 A
- Includes
- Elbow Housing, Tap Plug, Insulated Cap, Cable Size Adapter, Compression Lug, Stud, Lubricant, Crimp Chart and Instructions
- Material
- EPDM Rubber
- Product Type
- Window-Op Elbow Connector
- Special Functions
- Includes Seal and Insulated Cap
- Temperature Range
- -40 to +65 °C
Brand / LabelElastimold
Connection TypeCompression
Effective Date20190621
Insulation MaterialYes EPDM Rubber
Product NameELECTRICAL CONNECTOR>1000V
SizeCable Insulation Diameter 0.980 inch to 1.180 inch.
StandardsANSI/IEEE Standard 386
Voltage Rating25 kV
