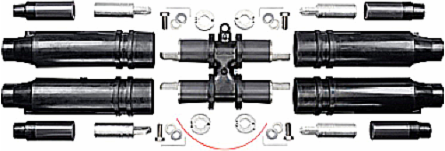

Thomas & Betts K656CH-DP0600537 Deadbreak Separable H-Joint Assembly
- MPN: K656CH-DP0600537
- UPC: 007511435963
- PPN: T-B-K656CH-DP0600537
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
600 Amp, 15/25 kV, Deadbreak Separable H Joint package 4-Way with Test Point, (2) Sides are Cable Insulation Diameter L - 1.180 inch to 1.465 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 450 or Compacted Solid 550. (2) Sides are Cable Insulation Diameter G - 0.760 inch to 0.950 inch. Aluminum Compression Lug. Conductor Size AWG Compressed Stranded 2/0 or Compacted Solid 3/0. Includes SG1 - Cold-Shrinkable Seal with Copper Rod and Crimp Connector.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121421 Electrical connector assembly
- Brand Name
- Elastimold
- Special Features
- Fully Shielded, Fully Submersible, 100 Percent Peroxide Cured EPDM Molded Rubber. Includes Integral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
- Standard
- ANSI/IEEE Standard 386
- Connection
- Compression / Crimp
- Material
- Housing - EPDM Rubber
- Voltage Rating
- 15/25kV
- Insulation
- Yes, EPDM Rubber
- Environmental Conditions
- All Weather Conditions
IGCC4586 Electrical connector assembly
TypeDeadbreak Separable H-Joint Assembly
ApplicationCompact Design is suitable for Small Vaults and Manholes.
SizeOverall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
Conductor RangeCompressed Stranded 450 or Compacted Solid 550. Compressed Stranded 2/0 or Compacted Solid 3/0.
ColorBlack
Amperage Rating600 Amps
Temperature Rating-40 degrees to +65 degrees Celsius
Consist Of1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Installation Instructions
Packaging
- Outer Quantity
- 1
- Weight Uom
- 1 lbs. Each
Outer Dimensions (inches)1x1x1
