Thomas & Betts K656CH-DP0593508 Deadbreak Separable H-Joint Assembly

MPN: K656CH-DP0593508
UPC: 783786475827
PPN: T-B-K656CH-DP0593508

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

600 Amp, 15/25KV, Separable H Joint package 4-Way with Test Point, N0360 - Cable Insulation Diameter 1.515 inch to 1.780 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 650 or Compacted/Solid 750. N0360 - Cable Insulation Diameter 1.515 inch to 1.780 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 650 or Compacted/Solid 750. K0360 - Cable Insulation Diameter 1.090 inch to 1.310 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 650 or Compacted/Solid 750. K0260 - Cable Insulation Diameter 1.090 inch to 1.310 inch. Universal Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed/Stranded 3/0 or Compacted/Solid 4/0.

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121421 Electrical connector assembly
Brand Name	Elastimold
Special Features	Fully Shielded, Fully Submersible, 100 Percent Peroide Cured EPDM Molded Rubber. Includes Intergral Capacitive Test Point. Reusable Components Reduce Inventory and other Costs.
Standard	ANSI/IEEE Standard 386
Connection	Compression - Crimp
Material	Housing - EPDM Rubber
Voltage Rating	15/25kV
Insulation	Yes, EPDM Rubber
Environmental Conditions	All Weather Conditions

IGCC	4586 Electrical connector assembly
Type	Deadbreak Separable H-Joint Assembly
Application	Compact Design is suitable for Small Vaults and Manholes.
Size	Overall Length 37.27 inches, Width 8.12 inches not counting 1 inch Test Point.
Conductor Range	Conductor Size kcmil Compressed/Stranded 650 or Compacted/Solid 750 and Conductor Size AWG Compressed/Stranded 3/0 or Compacted/Solid 4/0.
Color	Black
Amperage Rating	600 Amps
Temperature Rating	-40 degrees to +65 degrees Celsius

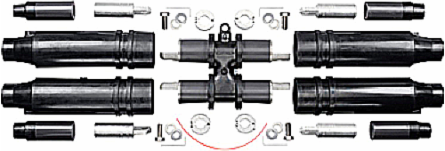

Consist Of	1 4-Way Bus Bar, 2 Tubes Lubricant, 4 Straight Recceptacles, 4 Compression Lugs, 4 Cable Adapters, 4 Adapter Retaining Rings, 4 Bolts/Washers, Insstallation Instructions
