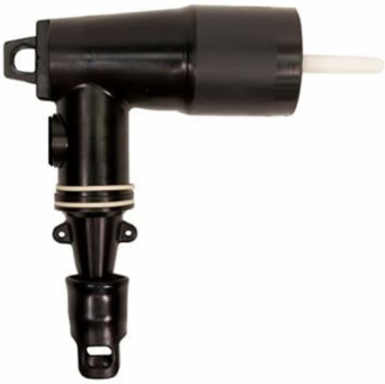

28 LB ELB W/JS HOUSING .805-1.060
Thomas & Betts

Thomas & Betts 261LRJS-C 28 LB ELB W/JS HOUSING .805-1.060

  • MPN: 261LRJS-C
  • UPC: 751142837930
  • PPN: T-B-261LRJS-C

CAD

$235.73

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

25/28kV, 200 Amp, Loadbreak Jacket Seal Elbow Connector, .805 inch - 1.060 Inch Cable Insulation Diameter

Specifications

Additional Information

Application
25/28 kV, 200 Amp
Color
Black
Includes
1 Elbow Housing
Material
Housing - EPDM Rubber
Product Name
ELECTRICAL CONNECTOR,>1000V
Special Functions
25/28kV, 200 Amp Loadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Provision for hot stick operation. Provision for ground wire connection. Wide cable range with minimum number of sizes. Long bi-metal compression lug is standard. Built in Jacket Seal.
Temperature Range
-40 to +65 °C
Voltage Rating
25 to 28 kV
Brand / LabelElastimold
Current Rating200 A
Insulation MaterialYes, EPDM Rubber
Number of Batteries0
Product TypeLoadbreak Elbow Connector and Jacket Seal
StandardsANSI/IEEE Standard 386
UPC075114283793

Dimensions

Product Net Weight
1 lb453.515 g

Container Information

Package Level 2 Units
1 piece
Package Level 2 Height
12.5 in318 mm
Package Level 2 Width19.12 in486 mm
Package Level 2 Depth / Length10.5 in267 mm

Classifications

UNSPSC
39121421
IDEA Granular Category Code (IGCC)
4586 >> Electrical connector assembly
WEEE CategoryProduct Not in WEEE Scope

Ordering

EAN
0075114283793
Customs Tariff Number8535908020
