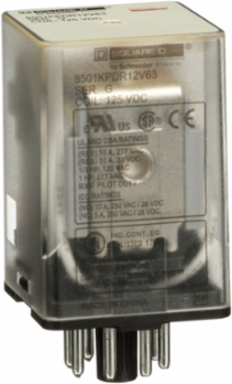

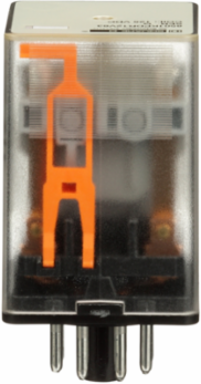

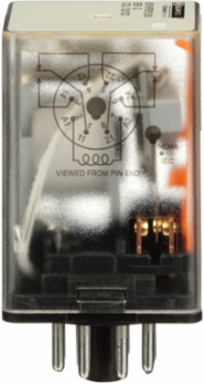

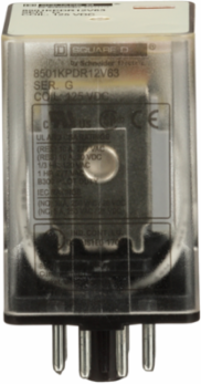

Square D 8501KPDR12V63 Harmony DPDT Relay, 10A at 120V AC, 1 HP at 277V AC, 8 Pins

Harmony DPDT Relay, 10A at 120V AC, 1 HP at 277V AC, 8 Pins
Harmony DPDT Relay, 10A at 120V AC, 1 HP at 277V AC, 8 Pins
Harmony DPDT Relay, 10A at 120V AC, 1 HP at 277V AC, 8 Pins
Harmony DPDT Relay, 10A at 120V AC, 1 HP at 277V AC, 8 Pins
Harmony DPDT Relay, 10A at 120V AC, 1 HP at 277V AC, 8 Pins
  • MPN: 8501KPDR12V63
  • PPN: SCH-8501KPDR12V63
  • UNSPSC: 39122325

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$67.48/ EA

Description

8501KP universal plug in relays are designed for multipole switching applications at 300 VAC or lower. These relays are designed to be plugged into a relay socket. This makes for very easy replacement. This relay plugs into an 851NR51 or 8501NR52 relay socket. This relay has a DPDT contact arrangements. It has two normally open and two normally closed contacts. The contacts have a 10 ampere rating 277 VAC, a 10 ampere rating at 28 VDC, a 1/3 HP rating at 120 VAC, a 1 HP rating at 277 VAC and a B300 inductive rating. Relays can be ordered with a wide variety of coil voltages. This relay has a 125 VDC nonreplaceable coil. A green LED indicator is not supplied on this relay. Relay is 2.66 inches tall, 1.40 inches wide and 1.40 inches deep. 8501KP relays are UL listed with Square D relay sockets, UL component recognized and CSA certified.

Specifications

Complementary Attributes

Maximum Switching Voltage
30 V DC, 300 V AC
Rated Power In HP
1 hp 277 V AC, 0.33 hp 120 V AC
Rated Breaking Capacity3 A 120 V AC inductive control circuit UL 508, 1.5 A 240 V AC inductive control circuit UL 508, 10 A 277 V AC resistive control circuit UL 508, 10 A 30 V DC resistive control circuit UL 508
UC Control Circuit Voltage125 V DC

Important Information Attributes

Persona Type Ids
BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Operating Time
20 ms - drop-out, 20 ms - pick-up
Local Publishable Date
2026-01-12
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1310013EN
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
ROHS EUR In Scope
Yes
ROHS EUR Full Compliance Status
Compliant
China ROHS In Scope
Yes
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
WD Status
A - SELECTED - PCE ONLY (Migration)
Function Option
Standard
Package Weight Lbs
90.719 g
Product Or Component Type
relay
Returnability
Yes
Sustainable Packaging
No
Relationship Type
Compatible relationship
Product Kit Identifier
N
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeIn
EOLI Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdCOMPLIANT
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticNo
Return IndicatorY
Function Option IdSTANDARD
Local Signallingno indicator
Product AvailabilityStock - Normally stocked in distribution facility
Range Of Product8501K
Shape Of Pintubular
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP1310013EN
Product ManagerZHEN YIN

Environment Attributes Main

EU ROHS Directive
Compliant?, Compliant
Take Back
No
Recycled Metal Content At Cr Level
0 %
Circularity Profile
ENVEOLI1310013EN
Packaging Made With Recycled Cardboard
No
Reach Free Of SVHC
Yes
Pep Code
ENVPEP1310013EN
ROHS Exemption InformationYes
Reach Free SHVCYes
China ROHS RegulationX
Environmental DisclosureENVPEP1310013EN
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold

General Attributes

Product Or Component Type
relay
Range Of Product8501K

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
