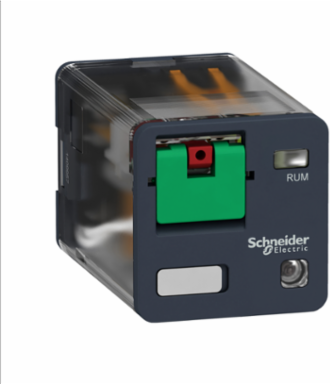

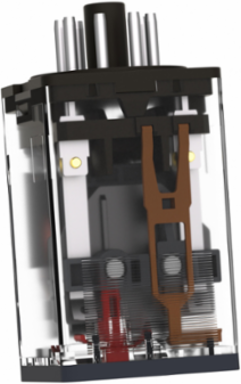

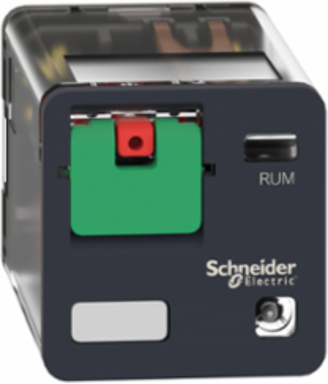

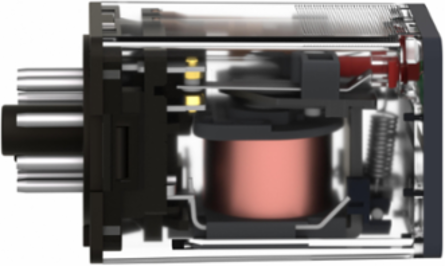

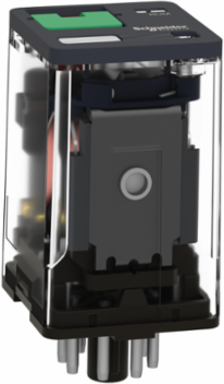

Schneider Electric RUMC32F7 Harmony Universal Plug-In Relay, 10A, 120V AC, IP40, Lockable Test Button
- MPN: RUMC32F7
- PPN: SCH-RUMC32F7
CAD
$29.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 120V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Features
- Featuring three poles and double-throw (3C/O) contacts, this universal plug-in relay allows you to simultaneously switch three independent electrical loads. This multi-pole versatility simplifies complex automation logic, reducing the need for multiple relays and saving critical rail space in your industrial control cabinet or motor starter panel.
- Specifically designed for 120V AC control circuits, this relay integrates seamlessly with standard North American industrial power supplies and PLC outputs. This common voltage rating ensures "plug-and-play" compatibility for facility maintenance and system upgrades, eliminating the need for additional step-down transformers or specialized power sources.
- Built with high-conductivity silver alloy contacts, this Zelio RUM relay safely switches currents up to 10 Amps at 250V AC/28V DC. It provides the robust power handling required for operating heavy-duty solenoids, small motors, and heating elements, ensuring long-term electrical durability in high-cycle manufacturing environments.
- Equipped with a manual "push-to-test" button and a mechanical flag indicator, this relay allows technicians to manually force the contacts for rapid circuit validation and troubleshooting. The integrated LED instantly confirms when the coil is energized, drastically reducing diagnostic time during commissioning or when identifying a faulty sensor in the fiel

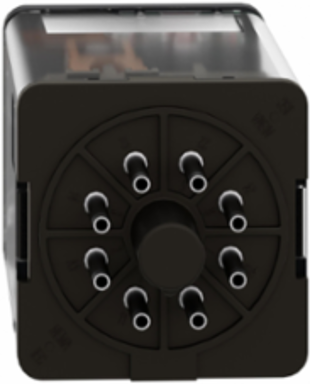

- Featuring the industry-standard 11-pin round (cylindrical) plug-in base, the RUMC32F7 ensures a secure, vibration-resistant connection when seated in a compatible Schneider or third-party octal socket. This standard footprint allows for tool-free relay replacement in seconds, minimizing operational downtime during routine maintenance cycles.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Sweden, Singapore, United States
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Capacity
- 2500 VA/280 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current10 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits96...132 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1500 V AC between contacts with micro disconnection, 2500 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
- Control Circuit Type2
- AC
- [Ie] Rated Operational Current
- 10 A at 30 V DC conforming to CSA10 A at 28 V DC (NO) conforming to IEC, 10 A at 277 V AC conforming to UL10 A at 30 V DC conforming to UL10 A at 277 V AC (same polarity) conforming to CSA5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC
- [Ui] Rated Insulation Voltage
- 250 V IEC300 V CSA, 300 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.05981641304849579, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.01515944796918122
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 46 kg CO2 eq., 46.36340926993165
- Local Publishable Date
- 2026-06-24
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 1700 Ohm 20 °C +/- 15 %
- Contacts Material
- AgNi
- Control Type
- lockable test button
- Load Current
- 10 A 250 V AC10 A 28 V DC
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- universal relay
- Returnability
- Yes
- Series Name
- RUM series
- Software Version
- v6.3.0.1-4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 51 kg CO2 eq.
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 95.6592
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- [Ithe] Conventional Enclosed Thermal Current
- 10 A -40-55 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490075
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load
Control Circuit Voltage120 V
Certificate AgencyEAC, UL, CSA
[Uc] Control Circuit VoltageAC 50/60 Hz, 120 V
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1674200966057286, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.184666954431427
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption In Va3-3 60 Hz
Compatibility CodeRUM
Contacts Type And Composition3 C/O
Electrical Durability100000 cycles resistive
Mechanical Durability5000000 cycles
Operating Time20 ms at nominal voltage
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms at nominal voltage
Safety Reliability DataB10d = 100000
Shape Of Pincylindrical
Status Ledwith
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Pep CodeENVPEP2506025EN
Pep Verification Date2025-06-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourcereferent product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; High voltage; 2020; China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Global, GLO
Recyclability Potential In %58
[Uimp] Rated Impulse Withstand Voltage4 kV 1.2/50 µs)
Package Weight(Lbs)92.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506025EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint50.79047218198649
Environmental DisclosureENVPEP2506025EN
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Overview Attributes
- Device Presentation
