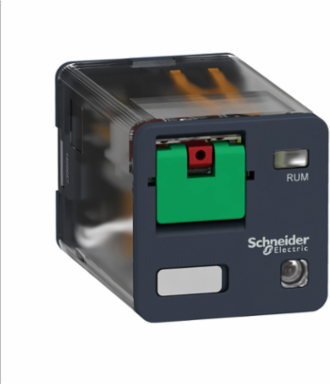

Schneider Electric RUMF32F7 Harmony Plug-In Relay 10A 3CO LED 120V AC Lockable Test Button

MPN: RUMF32F7
PPN: SCH-RUMF32F7
UNSPSC: 39122325

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$31.66

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

"This Harmony RUM universal plug-in relay uses flat pins, has a control coil voltage of 120V AC and has 3 changeover contacts triple pole double throw with a rating of 10A." "It provides a complete system solution for the most demanding applications." "It also offers one-step lockable test button and “Power On” LED for readiness." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night."

Features

Engineered with a 3 C/O triple-pole double-throw contact arrangement, this universal relay simultaneously manages up to three independent electrical circuits. It provides an efficient, space-saving solution for multi-stage industrial automation systems, eliminating the need to stack multiple single-pole relays within your control panel.
Operating on a standard 120V AC (50/60 Hz) control circuit voltage, this industrial-grade interface relay features silver nickel (AgNi) contacts rated for a heavy-duty 10A current capacity at 250V AC or 28V DC. This ensures rugged performance and minimal contact erosion when controlling demanding resistive loads, high-capacity motors, or HVAC equipment.
Minimize expensive downtime with a built-in mechanical lockable test button and an integrated "Power On" LED status indicator. The single-step manual test button allows maintenance technicians to safely simulate contact switching during commissioning, while the high-visibility LED gives instant visual feedback on control circuit power status from across the facility floor.
Housed in an IP40-rated dust-resistant protective shell, this robust unit delivers a long mechanical lifespan of up to 5,000,000 operational cycles. It maintains reliable dielectric strength and switching accuracy across an extended temperature range from -40 F to 131 F (-40 C to 55 C), ensuring long-term continuity in demanding manufacturing spaces.
Built to meet rigorous North American and global safety guidelines, this device is fully compliant with UL 508, CSA C22.2 No 14, and IEC 61810-1 standards, carrying official UL, CSA, and EAC certifications. It satisfies all major environmental regulations, including RoHS compliance and Green Premium sustainability mandates, guaranteeing seamless integration into code-compliant industrial control panels.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China, United States

Weight	108 g

Complementary Attributes

Ie Rated Operational Current	10 A at 30 V DC conforming to CSA10 A at 28 V DC (NO) conforming to IEC, 10 A at 277 V AC conforming to UL10 A at 30 V DC conforming to UL10 A at 277 V AC (same polarity) conforming to CSA5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC
Ui Rated Insulation Voltage	250 V IEC300 V CSA, 300 V UL
Line Rated Current	10 A
Maximum Switching Voltage	250 V IEC
Rated Operational Voltage Limits	96...132 V AC

Uc Control Circuit Voltage	AC 50/60 Hz, 120 V
Control Circuit Type	AC
Maximum Switching Capacity	2500 VA/280 W
Minimum Switching Capacity	170 mW 10 mA, 17 V
Uimp Rated Impulse Withstand Voltage	4 kV 1.2/50 µs)

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Dielectric Strength	1500 V AC between contacts with micro disconnection, 2500 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
Shock Resistance	10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
Control Circuit Type2	AC
Drop Out Voltage Threshold	>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2 kg CO2 eq., 0.1582891572565761
Carbon Footprint Of The Manufacturing Phase A1 To A3	4 kg CO2 eq., 3.956439035967733
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Average Coil Consumption In Va	3-3 60 Hz
Compatibility Code	RUM
Contacts Type And Composition	3 C/O
Electrical Durability	100000 cycles resistive
Mechanical Durability	5000000 cycles
Operating Time	20 ms at nominal voltage
Product Or Component Type	plug-in relay
Range Of Product	Harmony Electromechanical Relays
Reset Time	20 ms at nominal voltage
Safety Reliability Data	B10d = 100000
Shape Of Pin	flat
Status Led	with
Test Levels	level A group mounting
Utilisation Coefficient	20 %
Database Version	2024-01
Nbr. Of Units In Pkg.	1
Ithe Conventional Enclosed Thermal Current	10 A -40-55 °C
Functional Unit Description	To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
Functional Unit Unit	unit
Recyclability Potential In %	58

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Operating Rate	<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load
Control Circuit Voltage	120 V
Certificate Agency	CSA, UL, EAC
Carbon Footprint Of The Distribution Phase A4	0.05655408044504548, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.01433266550531009, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	33 kg CO2 eq., 33.19510367847178
Local Publishable Date	2026-08-10
Weee Scope	Out
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Average Resistance	1700 Ohm 20 °C +/- 15 %
Contacts Material	AgNi
Control Type	lockable test button
Load Current	10 A 250 V AC10 A 28 V DC
Operating Position	any position
Product Availability	Stock - Normally stocked in distribution facility
Protection Category	RT I
Relay Type	universal relay
Returnability	Yes
Series Name	RUM series
Software Version	v6.3.0.1-4
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	37 kg CO2 eq.
Vibration Resistance	3 gn +/- 1 mm 10-150 Hz)5 cycles in operation4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
Data Source	extrapolated product
Customs Code	8536490080
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Ambient Air Temperature For Operation	-40-55 °C-40-55 °C
Eu Rohs Directive	Compliant
Packaging Made With Recycled Cardboard	Yes
Reach Free Of Svhc	Yes
Pep Code	"ENVPEP2506025EN"
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Take Back	No
Recycled Metal Content At Cr Level	0 %
Carbon Footprint	37.380718617646444
Environmental Disclosure	"ENVPEP2506025EN"
Ip Degree Of Protection	IP40
Packaging Without Single Use Plastic	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Verification Date	2025-06-09
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
