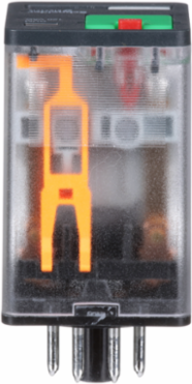

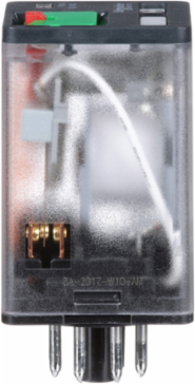

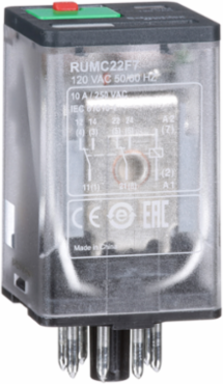

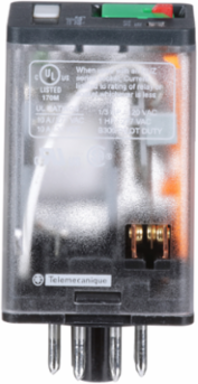

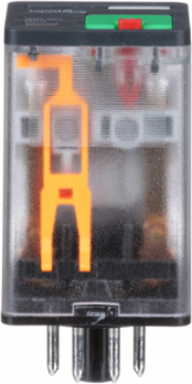

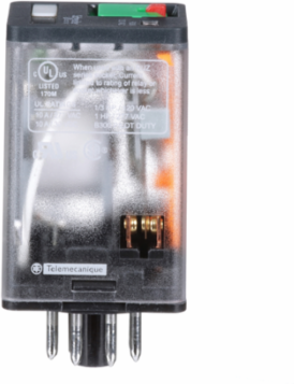

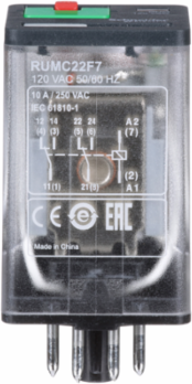

Schneider Electric RUMC22F7 Harmony Electromechanical Relay, 10A, 120V AC, 2 C/O, IP40
- MPN: RUMC22F7
- PPN: SCH-RUMC22F7
CAD
$26.55
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Harmony Plug in Relays is a complete range of general purpose industrial relays, sockets and accessories. Harmony plug in relays optimize design flexibility, expedite installation and simplify maintenance with 8 to 30 A load ratings, multiple contact combinations, a wide range of coil voltages, and full feature covers. The Harmony plug in relays have a test button which allows users to check circuits for proper operation. They have lock down door holds contacts in place to test circuits during maintenance. A standard mechanical flag indicates relay status. An optional bipolar LED indicates operation when relay is energized. Most of these relays plug into a relay socket that can be DIN rail mounted or panel mounted. Harmony plug in relays are UL Listed. "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." "Status display with LED, clearly signal both in the day and night." 0 0 0 0 0 0 0 0 0
Features
- The Schneider RUMC22F7 features 2 C/O (DPDT) contacts, allowing you to manage two independent electrical paths simultaneously. This "Universal" series relay is engineered for high-duty cycles, providing a reliable interface between your control logic and heavy-duty industrial loads.
- The "F7" designation indicates a 120V AC (50/60 Hz) coil. This is the most common control voltage in North American industrial environments, allowing for seamless integration into existing motor control centers and automation panels without the need for additional transformers.
- Each pole is rated for 10 Amps at 250V AC, making it significantly more robust than standard miniature relays. This high current capacity is ideal for directly controlling solenoids, heating elements, and small single-phase motors that require a durable, long-lasting switching solution.
- This relay features Cylindrical (Round) pins, designed to plug into standard 8-pin octal sockets like the RUZC2M. The octal base is a classic industrial standard, prized for its mechanical strength and "keyed" design that prevents incorrect orientation during replacement.
- To minimize downtime, the RUMC22F7 is equipped with a mechanical indicator and a built-in LED. These provide instant visual confirmation of the contact position and coil energization. Additionally, the lockable test button allows technicians to manually trip the contacts to verify circuit continuity during commissioning.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Singapore
Complementary Attributes
- Control Circuit Type
- AC
- Maximum Switching Capacity
- 2500 VA/280 W
- Minimum Switching Capacity
- 170 mW 10 mA, 17 V
Line Rated Current10 A
Maximum Switching Voltage250 V IEC
Rated Operational Voltage Limits96...132 V AC
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 1500 V AC between contacts with micro disconnection, 2500 V AC between coil and contact with reinforced, 2000 V AC between poles with basic
- Shock Resistance
- 10 gn 11 ms) in operation IEC 60068-2-27, 10 gn 11 ms) not operating IEC 60068-2-27
- Control Circuit Type2
- AC
- [Ie] Rated Operational Current
- 10 A at 28 V DC (NO) conforming to IEC10 A at 277 V AC conforming to CSA, 10 A at 277 V AC conforming to UL10 A at 30 V DC conforming to UL, 10 A at 30 V DC conforming to CSA5 A at 250 V AC (NC) conforming to IEC, 5 A at 28 V DC (NC) conforming to IEC, 10 A at 250 V AC (NO) conforming to IEC
- [Ui] Rated Insulation Voltage
- 250 V IEC300 V CSA, 300 V UL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.05812502712407452, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.014730795102679814
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 32 kg CO2 eq., 31.666639636605897
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Average Resistance
- 1700 Ohm 20 °C +/- 15 %
- Contacts Material
- AgNi
- Control Type
- lockable test button
- Load Current
- 10 A 250 V AC10 A 28 V DC
- Operating Position
- any position
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Category
- RT I
- Relay Type
- universal relay
- Returnability
- Yes
- Series Name
- RUM series
- Software Version
- v6.3.0.1-4
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 36 kg CO2 eq.
- Vibration Resistance
- 3 gn +/- 1 mm 10-150 Hz)5 cycles in operation4 gn +/- 1 mm 10-150 Hz)5 cycles not operating
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits or where several circuits must be controlled by one signal majorly in industrial applications. Product has lifetime of 10 years with a 30% use rate and product is adhering to international standards IEC 61810-1.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; High voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Global, GLO
- Recyclability Potential In %
- 58
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV 1.2/50 µs)
- Package Weight(Lbs)
- 90.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Operating Rate<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load<= 18000 cycles/hour no-load, <= 18000 cycles/hour no-load, <= 1200 cycles/hour under load, <= 1200 cycles/hour under load
Control Circuit Voltage120 V
Certificate AgencyEAC, UL, CSA
[Uc] Control Circuit VoltageAC 50/60 Hz, 120 V
Drop-out Voltage Threshold>= 0.15 Uc AC, >= 0.15 Uc AC>= 0.15 Uc AC, >= 0.15 Uc AC
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.162686078291481, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]4 kg CO2 eq., 4.06634012030017
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Coil Consumption In Va3-3 60 Hz
Compatibility CodeRUM
Contacts Type And Composition2 C/O
Electrical Durability100000 cycles resistive
Mechanical Durability5000000 cycles
Operating Time20 ms at nominal voltage
Product Or Component Typeplug-in relay
Range Of ProductHarmony Electromechanical Relays
Reset Time20 ms at nominal voltage
Safety Reliability DataB10d = 100000
Shape Of Pincylindrical
Status Ledwith
Test Levelslevel A group mounting
Utilisation Coefficient20 %
Pep CodeENVPEP2506025EN
Pep Verification Date2025-06-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
[Ithe] Conventional Enclosed Thermal Current10 A -40-55 °C
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-85 °C, -40-85 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Ambient Air Temperature For Operation
- -40-55 °C-40-55 °C
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2506025EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint35.9685216574243
Environmental DisclosureENVPEP2506025EN
Ip Degree Of ProtectionIP40
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-06-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- plug-in relay
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001437
ETIM 9EC001437
Overview Attributes
- Device Presentation
- complete product
