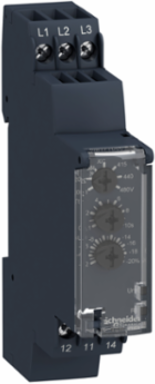

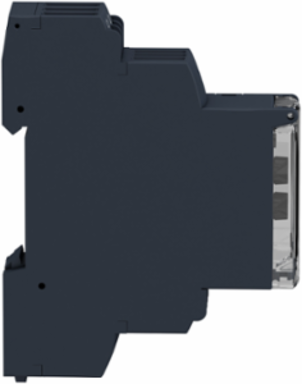

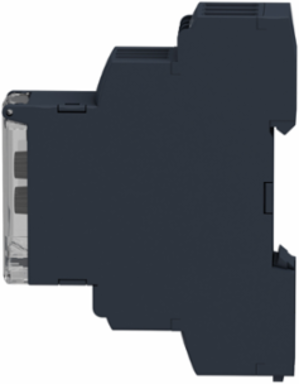

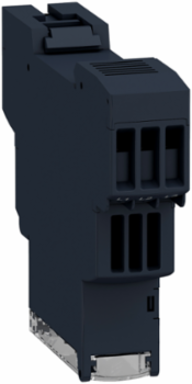

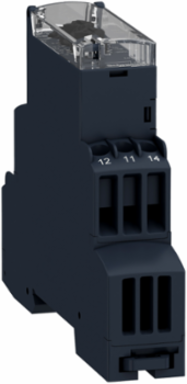

Schneider Electric RM17TA00 Harmony 3-Phase Control Relay, 5A, 1 C/O, 208...480V AC, 17.5 mm Width

MPN: RM17TA00
PPN: SCH-RM17TA00
UNSPSC: 39122331

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$188.29

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony RM17-TA relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slimmest form-factors with 17.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. The product monitors its own power supply, when the power supply is abnormal, the output relay de-energizes. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0

Features

Simplified panel design due to 0.69in width same as 1-pole circuit breaker
Experience unprecedented accuracy, predictive maintenance, and superior security
The product monitors its own power supply. When the power supply is abnormal, the output relay de-energizes
Transparent cover offers tamper protection and reduces maintenance
Compatible with a wide range of applications, such as hoisting, packaging, lifts, textile, pumping, and water

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

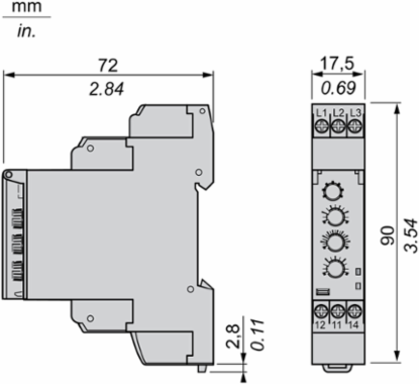

Width	0.69 in

Height	3.54 in
Weight	92 g

Complementary Attributes

Control Circuit Voltage Limits	- 12 % + 10 % Un, - 12 % + 10 % Un
Control Circuit Frequency	50...60 Hz +/- 10 %
Maximum Measuring Cycle	150 ms measurement cycle as true rms value
Minimum Switching Current	10 mA 5 V DC
Ui Rated Insulation Voltage	400 V IEC 60664-1

Maximum Switching Current	5 A AC, 5 A DC
Line Rated Current	5 A
Maximum Switching Voltage	250 V AC
Uc Control Circuit Voltage	208...480 V
Us Rated Supply Voltage	, self-powered, self-powered

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Insulation Resistance	> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5> 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5, > 500 MOhm 500 V DC IEC 60255-5
Relay Monitored Parameters	phase failure detection, asymmetry, phase sequence, phase failure detection
Safety Reliability Data	MTTFd = 502.2 years, B10d = 470000
Certificate Agency	GOST, CSA, GL, C-tick, UL
Carbon Footprint Of The End Of Life Phase C1 To C4	0.2351375632946527, 0.2 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 1.973381242310562
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	RM17
Control Type	without test button
Electrical Durability	100000 cycles
Functionality	asymmetry
Hysteresis	2-2 %
Marking	CE
Measurement Voltage Limits	183-528 V AC
Mounting Support	35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage Category	III conforming to IEC 60664-1
Power Consumption In Va	0-22 VA 400 V AC 50 Hz
Product Or Component Type	3-phase control relay
Range Of Product	Harmony Control Relays
Relay Type	multifunction control relay
Returnability	Yes
Supply Frequency	50/60 Hz +/- 10 %
Sustainable Packaging	Yes
Tightening Torque	0.6-1 N.m IEC 60947-1
Total Lifecycle Carbon Footprint	98 kg CO2 eq.
Measurement Range 4	208...480 V AC
Data Source	extrapolated product
Height Useful	90 mm
Width Real	17.5 mm
Customs Code	8536698000
Functional Unit Description	Harmony RM17-TE relay allows monitoring of power supply circuits in 3-phase networks. This modular multi function 3-phase supply control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It works with power consumption of 2.7 W in 80% active mode with life span of 10 years.
Functional Unit Unit	Unit

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Measurement Error	< 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation< 0.05 %/°C with temperature variation, < 0.05 %/°C with temperature variation, < 1 % over the whole range with voltage variation, < 1 % over the whole range with voltage variation
Response Time	< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)< 200 ms (in the event of a fault), < 200 ms (in the event of a fault)
Connections Terminals	screw connectors, screw terminals, 1 x 0.5...1 x 4 mm² 20 AWG...11 AWG) solid without cable endscrew terminals, 2 x 0.5...2 x 2.5 mm² 20 AWG...14 AWG) solid without cable endscrew terminals, 1 x 0.2...1 x 2.5 mm² 24 AWG...12 AWG) flexible with cable endscrew terminals, 2 x 0.2...2 x 1.5 mm² 24 AWG...16 AWG) flexible with cable end
Carbon Footprint Of The Distribution Phase A4	0.25717870043528057, 0.3 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0 kg CO2 eq., 0.000389720788736194
Carbon Footprint Of The Use Phase B2 B3 B4 B6	95 kg CO2 eq., 95.41983755211216
Local Publishable Date	2026-08-10
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1601001EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1918
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Adjustment Of Asymmetry Threshold	5...15 % of Un selected
Contacts Type And Composition	1 C/O
Dielectric Test Voltage	2 kV AC 50 Hz, 1 min IEC 60255-5
Electromagnetic Compatibility	emission standard for industrial environments conforming to IEC 61000-6-4emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3immunity for industrial environments conforming to IEC 61000-6-2
Housing Material	polycarbonate
Local Signalling	LED (green) for power ONLED (yellow) for relay ON
Measurement Range	208...480 V AC
Mechanical Durability	30000000 cycles
Operating Position	any position without derating
Phase Failure Sensitivity	0.7 Un
Product Availability	Stock - Normally stocked in distribution facility
Product Specific Application	for 3-phase supply
Relay Name	RM17TA
Reset Time	1500 ms time delay
Software Version	v6.2-6
Supply Voltage Limits	183-528 V AC
Switching Capacity In Va	1250 VA
Time Delay Type	adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
Contacts Composition	1 C/O
Database Version	2024-04
Height Nominal	90 mm
Width Nominal	17.5 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Environment Attributes Main

Ambient Air Temperature For Storage	-40-70 °C, -40-158 °F, -40-70 °C, -40-158 °F
Take Back	No
China Rohs Regulation	X
Carbon Footprint	97.88592477894139
Circularity Profile	ENVEOLI1601001EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1601001EN
Pcr Version	PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep	Independent internal review

Directives	89/336/EEC - electromagnetic compatibility, 73/23/EEC - low voltage directive
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ambient Air Temperature For Operation	-20-50 °C-20-50 °C
Environmental Disclosure	ENVPEP1601001EN
Ip Degree Of Protection	IP20 IEC 60529 terminals)IP30 IEC 60529 casing)
Packaging Without Single Use Plastic	Yes
Relative Humidity	95-95 % 55-55 °C IEC 60068-2-30
Pep Verification Date	2025-03-09
Psr Version	PSR-0005-ed3.1-EN-2023 12 08
