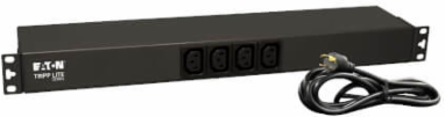

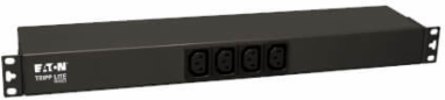

Tripp Lite PDUH20HVL6 Basic PDU 3.3/3.8kW 208/240V, 14 Outlets, NEMA L6-20P, 15 ft Cord, 1U Rack-Mount
- MPN: PDUH20HVL6
- UPC: 037332158970
- PPN: TRP-PDUH20HVL6
CAD
$362.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
3.8kW Single-Phase 208/240V Basic PDU, 14 Outlets (12 C13 & 2 C19), NEMA L6-20P Input, 15 ft. (4.57 m) Cord, 1U Rack-Mount
Features
- Mounting hardware
- Owner's manual
Documentation & Downloads
Specifications
Additional
- Output Capacity
- 3.84 kW (240V), 3.33 kW (208V), 3.2 kW (200V); 20A total capacity (Agency de-rated to 16A continuous); 16A max per C19 outlet; 12A max per C13 outlet
- Phase
- Single-Phase
- Maximum Input Amps
- 20A (Agency de-rated to 16A continuous)
- Unit Dimensions (HxWxD)
- 1.75 x 17.25 x 3.75 in (4.45 x 43.8 x 9.5 cm)
- Unit Weight
- 3.75 lbs (1.7 kg)
- Input Plug
- NEMA L6-20P
- Material
- Metal
- Operating Elevation
- 0 to 10,000 ft (0 to 3000 m)
- Grounding
- Rear grounding lug
- Warranty
- 5-year limited warranty
Voltage200, 208, 240V
Frequency50/60 Hz
Operating Frequency50/60 Hz
Minimum Rack Depth6.8 in
Form Factor1U horizontal, 0U vertical rack, wall-mount, under-counter
Input Cord Length15 ft (attached)
Storage Temperature Range-30 C to +50 C (-22 F to +122 F)
Relative Humidity5 to 95% non-condensing
CertificationsUL 60950, CSA, RoHS Compliant
