Killark

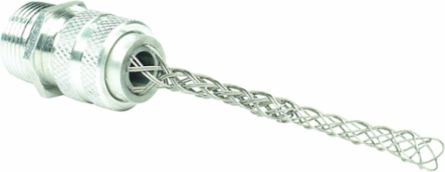

Killark ZS210-EX-MG 3/4 Inch Aluminum Straight Cord Connector, Cord Range .625-.750, Yellow

3/4 Inch Aluminum Straight Cord Connector, Cord Range .625-.750, Yellow
  • MPN: ZS210-EX-MG
  • UPC: 783936996837
  • PPN: HBL-ZS210-EX-MG
  • UNSPSC: 39121431

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$262.03/ EA

Description

3/4" Aluminum Cord Connector, Straight w/ Mesh Grip, Cord Range .625-.750, Yellow

Features

  • Aluminum fittings are strong, durable and corrosion resistant
  • Internal grommet provides liquidtight seal
  • Stainless steel mesh grips resist corrosion, prevent cord pull-out and control arc-of-bend
  • Aluminum fittings are strong, durable, and corrosion resistant. Internal grommet provides liquidtight seal. Stainless steel mesh grips resist corrosion, prevent cord pull-out, and control arc-of-bend.

Specifications

Specifications

Country of Origin
China
Hazardous Rating(s)
Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
Hub Size
3/4"
Application
Z Series cord connector grips combine aluminum cord connectors with stainless steel mesh grips to provide superior cord pull-out prevention in indoor and outdoor applications. These grips provide enclosure terminations where cords are subjected to moistur
Finish
Natural
Special Features
Aluminum fittings are strong, durable, and corrosion resistant. Internal grommet provides liquidtight seal. Stainless steel mesh grips resist corrosion, prevent cord pull-out, and control arc-of-bend.
Width
0.55 in
ARRA Compliant
Contact Manufacturer
Description - Invoice
CONN STR 3/4" .625-.750 AL W/MG EX
Harmonization Code
7326200090
Lead Time
20 wk
Order Multiple
1 EA
Sub Class Code
D30D238
Cord Range
.625-.750,
Gross Weight with Packaging
0.1
Color Code
Yellow
Series
Z-EX Series
BOX SIZE
0.000x0.000x0.000 (in)
Carton - Number of Sub Packs
5
Carton - SCC-14 Next Lower Level Sub Pack
00783936996837
Master Pack Description
Each
Dimensions1.4 in x 0.55 in x 1.5 in
Height1.5 in
Length1.4 in
ColorSilver
Size1.4 in x 0.55 in x 1.5 in
TypeStraight Cord Connector With Mesh Grip
Finish TypeNatural
Class CodeD30
Freight Class Code06168002
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Cable Range.625 - .750 in
CSA File NumberLR73478
UL File NumberE22698
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - Gross Weight per Pack0.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA

Certifications
